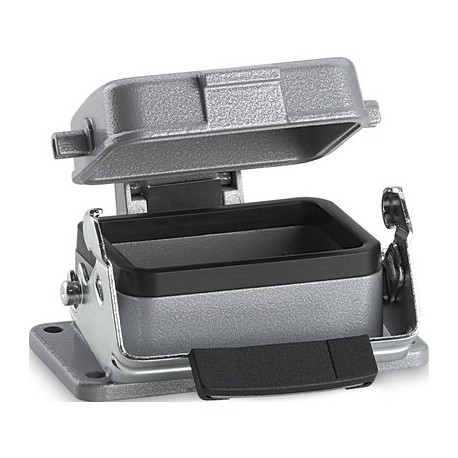

LAPP 10004000 10004000 H-B 6 AD PANEL MOUNT BASE LAPP H-B 6 AD PANEL MOUNT BASE View larger
Images are for illustrative purposes only. Please refer to data sheet for details

10004000 H-B 6 AD PANEL MOUNT BASE LAPP H-B 6 AD PANEL MOUNT BASE

10004000

10004000

H-B 6 AD PANEL MOUNT BASE

LAPP

10 Pcs.

H-B 6 AD PANEL MOUNT BASE EPIC® H-B 6 AD-LB

Connectors > Housing for rectangular connectors
EPIC rectangular

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

The robust metal housing with a single lever and a seal is suitable for use in investment construction and the plastics industry.

  • Metal lid with sturdy hinge
  • Protection rating UL50E tested

Benefits

  • The smallest housing out of the H-B series. For inserts with high electrical properties

Application range

  • Plant engineering
  • Control engineering
  • Plastics industry

Product features

  • H-A case: Wall base
  • Single lever
  • Metal cover
  • Included: flat gasket

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000437
  • ETIM 5.0 Class-Description: Housing for industrial connectors

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000437
  • ETIM 6.0 Class-Description: Housing for industrial connectors

Material

  • Housing: powder-coated aluminium alloy, grey
    Lever: zinc-plated steel
    Sealing: NBR

Protection rating

  • IP 65 (latched)
  • NEMA 250, UL50E: 12, 4 (latched)

VDE-tested

  • Certified production control: VDE-REG. no.: B437
  • UL-tested:
    UL File Number: E75770

Temperature range

  • -40°C to +100°C, short-term up to +125°C
