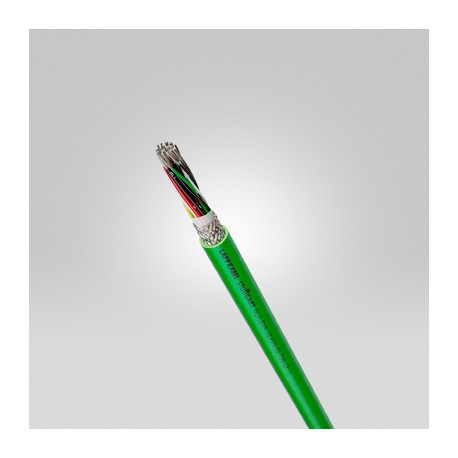

0036945 LAPP ÖLFLEX SERVO FD 798 CP 4x(2x0,14)+2x(1)

0036945

0036945

LAPP

1 m.

ÖLFLEX SERVO FD 798 CP 4x(2x0,14)+2x(1) ÖLFLEX

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Benefits

  • Allows much faster speed and accelerations which increases the economic efficiency of the machines
  • Suitable for use with encoders & resolvers from leading manufacturers
  • Thin, optimised for weight and volume
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Wide temperature range for applications in harsh climatic environments

Application range

  • Connecting cable between servo controller and encoder/resolver
  • Connecting cable between servo controller and speed generators
  • In power chains or moving machine parts
  • Particularly in wet areas of machine tools and transfer lines
  • Assembly lines, production lines, in all kinds of machines
  • For indoor and outdoor use

Product features

  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Halogen-free materials
  • Low-capacitance design
  • Abrasion and notch-resistant
  • Oil-resistant

Norm references / Approvals

  • UL AWM Style 20236
  • CSA AWM IA/B; IIA/B FT 1
  • UL File No. E63634
  • For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

  • Fine-wire or extra-fine wire, tinned-copper conductor
  • Core insulation: polypropylene (PP)
  • Cores (or core pairs) twisted in layers or bundles
  • Refer to data sheet for more details
  • Non-woven wrapping
  • PUR outer sheath, green (RAL 6018)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Details see datasheet ÖLFLEX® SERVO FD 798 CP

Conductor stranding

  • Fine wire or extra-fine wire

Minimum bending radius

  • Flexing: up from 7.5 x outer diameter
  • Fixed installation: 4 x outer diameter

Nominal voltage

  • IEC: 30 V
  • UL & CSA: 30 V

Test voltage

  • Core/core: 1500 V rms
  • Core/screen: 750 V rms

Temperature range

  • Flexing: -40°C to +90°C
    (UL/CSA: +80°C)
  • Fixed installation: -50°C to +90°C
    (UL/CSA: +80°C)

Bending cycles & operation parameters

  • See Selection Table A2-1 in the appendix of our online catalogue

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
