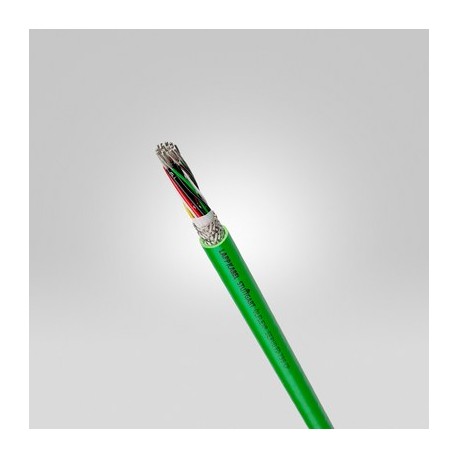

0036944 LAPP ÖLFLEX SERVO 798CP (3x(2x0,25)+3x0,25+2x
0036944
0036944
LAPP
1 m.
ÖLFLEX SERVO 798CP (3x(2x0,25)+3x0,25+2x
ÖLFLEX
Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A control cable carries critical feedback signals between automated servo drives, encoders, and factory control architecture. This Lapp 0036944 LAPP ÖLFLEX SERVO 798CP cable is engineered for high flexibility in continuous motion applications. Exact pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Flammability: UL/CSA: VW-1, FT1 IEC/EN: 60332-1-2
- For use in power chains: Please comply with assembly guideline Appendix T3
- Core insulation: polypropylene (PP)
- Flexing: up from 7.5 x outer diameter
- Fixed installation: 4 x outer diameter
- IEC: 30 V
- UL & CSA: 30 V
- Core/core: 1500 V rms
- Core/screen: 750 V rms
- Flexing: -40°C to +90°C (UL/CSA: +80°C)
- Fixed installation: -50°C to +90°C (UL/CSA: +80°C)
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
More info
▲Benefits
- Allows much faster speed and accelerations which increases the economic efficiency of the machines
- Suitable for use with encoders & resolvers from leading manufacturers
- Thin, optimised for weight and volume
- Increased durability under harsh conditions thanks to robust PUR outer sheath
- Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
- Wide temperature range for applications in harsh climatic environments
Application range
- Connecting cable between servo controller and encoder/resolver
- Connecting cable between servo controller and speed generators
- In power chains or moving machine parts
- Particularly in wet areas of machine tools and transfer lines
- Assembly lines, production lines, in all kinds of machines
- For indoor and outdoor use
Product features
- Flammability:
UL/CSA: VW-1, FT1
IEC/EN: 60332-1-2 - Halogen-free materials
- Low-capacitance design
- Abrasion and notch-resistant
- Oil-resistant
Norm references / Approvals
- UL AWM Style 20236
- CSA AWM IA/B; IIA/B FT 1
- UL File No. E63634
- For use in power chains: Please comply with assembly guideline Appendix T3
Product Make-up
- Fine-wire or extra-fine wire, tinned-copper conductor
- Core insulation: polypropylene (PP)
- Cores (or core pairs) twisted in layers or bundles
- Refer to data sheet for more details
- Non-woven wrapping
- PUR outer sheath, green (RAL 6018)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Details see datasheet ÖLFLEX® SERVO FD 798 CP
Conductor stranding
- Fine wire or extra-fine wire
Minimum bending radius
- Flexing: up from 7.5 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- IEC: 30 V
- UL & CSA: 30 V
Test voltage
- Core/core: 1500 V rms
- Core/screen: 750 V rms
Temperature range
- Flexing: -40°C to +90°C
(UL/CSA: +80°C) - Fixed installation: -50°C to +90°C
(UL/CSA: +80°C)
Bending cycles & operation parameters
- See Selection Table A2-1 in the appendix of our online catalogue
