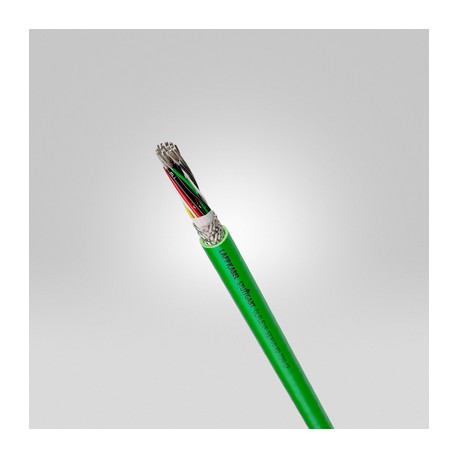

0036940 LAPP ÖLFLEX SERVO FD 798 CP (6x2x0,25)
0036940
0036940
LAPP
1 m.
Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Constructed for demanding continuous-flex applications, the Lapp 0036940 control cable maintains stable signal transmission inside high-acceleration cable tracks. Automated robotics and high-speed handling equipment rely on specialized high-flex communication lines to prevent downtime. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Fire performance: UL/CSA VW-1, FT1 IEC/EN 60332-1-2
- Conductor isolation: polypropylene (PP)
- Conductor/conductor: 1500 V rms
- Flexible use: -40°C to +90°C (UL/CSA: +80°C)
More info
▲ÖLFLEX® SERVO FD 798 CP, shielded encoder cable for high dynamic cable cable applications under severe conditions with UL/CSA AWM certification
- Extended Line:
For demanding applications in portable chains. Long hauls or high accelerations - Adapted to encoder systems from various manufacturers
- UL AWM Certification for USA and Canada
proceeds
- For faster moving processes and thus increases the efficiency of the machines
- Suitable for use in encoders and resolvers from major manufacturers
- Optimized size, weight and volume
- Greater durability in aggressive applications, thanks to pur's robust cover.
- Resistant to contact with lubricants based on mineral oil, dilute acids, aqueous alkaline solutions and other chemical agents
- Extended temperature range for applications in severe environmental conditions
Scope of use
- Connection cable between the servo controller and the encoder/resolver.
- Connection cable between the servo controller and the variable speed drives
- For cable chains or moving parts of machines
- Especially suitable for wet areas of machine tools and transfer lines
- Assembly lines, production lines, in any type of machinery.
- For indoor and outdoor use
Product features
- Fire performance: UL/CSA VW-1, FT1 IEC/EN 60332-1-2
- Halogen-free materials
- Low-capacity design
- Resistant to abrasion and cuts
- Oil resistant
Reference Standards / Approvals
- UL AWM Style 20236
- CSA AWM IA/B; IIA/B FT 1
- UL File No. E63634
- Use on cable chains: please pay attention to the assembly guidelines in Appendix T3.
Product composition
- Conductor of copper tarnished with fine thread or extra fine thread
- Conductor isolation: polypropylene (PP)
- Conductors (or pairs of conductors) braided into layers or bundles
- For additional information, see the datasheet
- Nonwoven envelope
- Polyurethane cover (PUR), green (RAL 6018)
ETS Classification 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class Description: Control Cable
ETTIM Rating 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control Line
Driver Identification Code
- See the details in the ÖLFLEX® SERVO FD 798 CP data sheet
Driver training
- Thin yarn or braided extra-thin yarn
Minimum radius of curvature
- Flexible: from 7.5 x outside diameter
- Fixed installation: 4 x outside diameter
Nominal voltage
- IEC: 30 V
- UL & CSA: 30 V
Test voltage
- Conductor/conductor: 1500 V rms
- Driver/display: 750 V rms
Temperature range
- Flexible use: -40°C to +90°C (UL/CSA: +80°C)
- Fixed installation: -50°C to +90°C (UL/CSA: +80°C)
Continuous bending cycles
- See the selection table A2-1 in the annex to our online catalogue
