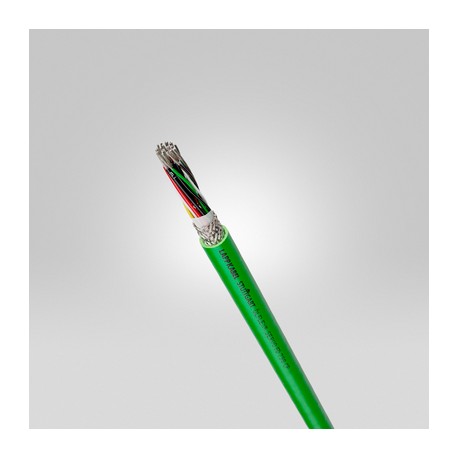

LAPP 0036933 0036933 LAPP ÖLFLEX® SERVO FD 798 CP, shielded encoder cable for high dynamic cable cable applications under.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

0036933 LAPP ÖLFLEX® SERVO FD 798 CP, shielded encoder cable for high dynamic cable cable applications under..

0036933

0036933

LAPP

1 m.

ÖLFLEX SERVO FD 798 CP (3x2x0,25+2x0,5) ÖLFLEX

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ÖLFLEX® SERVO FD 798 CP - Screened encoder cable for high dynamic power chain application in harsh conditions with UL/CSA AWM certification

  • Extended Line Performance - Long travel lengths or high acceleration
  • Fits to various encoder systems
  • AWM certification for USA and Canada

Benefits

  • Allows much faster speed and accelerations which increases the economic efficiency of the machines
  • Suitable for use with encoders & resolvers from leading manufacturers
  • Thin, optimised for weight and volume
  • Increased durability under harsh conditions thanks to robust PUR outer sheath
  • Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media
  • Wide temperature range for applications in harsh climatic environments

Application range

  • Connecting cable between servo controller and encoder/resolver
  • Connecting cable between servo controller and speed generators
  • In power chains or moving machine parts
  • Particularly in wet areas of machine tools and transfer lines
  • Assembly lines, production lines, in all kinds of machines
  • For indoor and outdoor use

Product features

  • Flammability:
    UL/CSA: VW-1, FT1
    IEC/EN: 60332-1-2
  • Halogen-free materials
  • Low-capacitance design
  • Abrasion and notch-resistant
  • Oil-resistant

Norm references / Approvals

  • UL AWM Style 20236
  • CSA AWM IA/B; IIA/B FT 1
  • UL File No. E63634
  • For use in power chains: Please comply with assembly guideline Appendix T3

Product Make-up

  • Fine-wire or extra-fine wire, tinned-copper conductor
  • Core insulation: polypropylene (PP)
  • Cores (or core pairs) twisted in layers or bundles
  • Refer to data sheet for more details
  • Non-woven wrapping
  • PUR outer sheath, green (RAL 6018)

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Details see datasheet ÖLFLEX® SERVO FD 798 CP

Conductor stranding

  • Fine wire or extra-fine wire

Minimum bending radius

  • Flexing: up from 7.5 x outer diameter
  • Fixed installation: 4 x outer diameter

Nominal voltage

  • IEC: 30 V
  • UL & CSA: 30 V

Test voltage

  • Core/core: 1500 V rms
  • Core/screen: 750 V rms

Temperature range

  • Flexing: -40°C to +90°C
    (UL/CSA: +80°C)
  • Fixed installation: -50°C to +90°C
    (UL/CSA: +80°C)

Bending cycles & operation parameters

  • See Selection Table A2-1 in the appendix of our online catalogue

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
