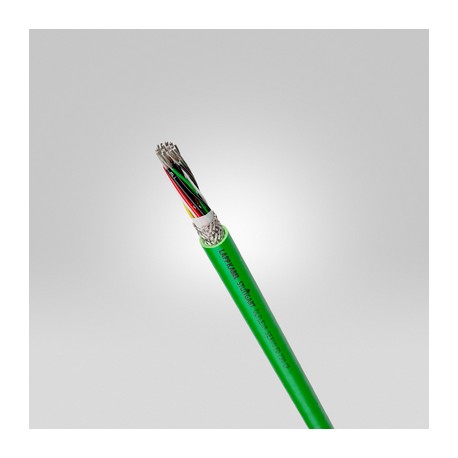

0036931 LAPP ÖLFLEX SERVO FD 798CP (3x(2x0,14)+2x(1))

0036931

0036931

LAPP

1 m.

ÖLFLEX SERVO FD 798CP (3x(2x0,14)+2x(1)) ÖLFLEX

Cables > Power cable 1 kV, for moving application
ÖLFLEX-SERVO cabling

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Engineered for high-speed drag chains and demanding industrial environments, the Lapp 0036931 LAPP ÖLFLEX SERVO FD 798CP (3x(2x0,14)+2x(1)) is a specialized control cable designed to withstand continuous bending stress. Such components maintain reliable signal and power integrity in automated handling equipment and robotic manufacturing tools. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Extended Line: For demanding applications in portable chains. Long hauls or high accelerations: Extended Line: For demanding applications in portable chains. Long hauls or high accelerations
  • Fire performance: UL/CSA VW-1, FT1 IEC/EN 60332-1-2: Fire performance: UL/CSA VW-1, FT1 IEC/EN 60332-1-2
  • Use on cable chains: please pay attention to the assembly guidelines in Appendix T3.: Use on cable chains: please pay attention to the assembly guidelines in Appendix T3.
  • Conductor isolation: polypropylene (PP): Conductor isolation: polypropylene (PP)
  • Flexible: from 7.5 x outside diameter: Flexible: from 7.5 x outside diameter
  • Fixed installation: 4 x outside diameter: Fixed installation: 4 x outside diameter
  • IEC: 30 V: IEC: 30 V
  • UL & CSA: 30 V: UL & CSA: 30 V
  • Conductor/conductor: 1500 V rms: Conductor/conductor: 1500 V rms
  • Driver/display: 750 V rms: Driver/display: 750 V rms
  • Flexible use: -40°C to +90°C (UL/CSA: +80°C): Flexible use: -40°C to +90°C (UL/CSA: +80°C)
  • Fixed installation: -50°C to +90°C (UL/CSA: +80°C): Fixed installation: -50°C to +90°C (UL/CSA: +80°C)
  • ETIM 5.0 Class-ID: EC000104: ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class Description: Control Cable: ETIM 5.0 Class Description: Control Cable
  • ETIM 6.0 Class-ID: EC000104: ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control Line: ETIM 6.0 Class-Description: Control Line

More info

▲

ÖLFLEX® SERVO FD 798 CP, shielded encoder cable for high dynamic cable cable applications under severe conditions with UL/CSA AWM certification

  • Extended Line:
    For demanding applications in portable chains. Long hauls or high accelerations
  • Adapted to encoder systems from various manufacturers
  • UL AWM Certification for USA and Canada

proceeds

  • For faster moving processes and thus increases the efficiency of the machines
  • Suitable for use in encoders and resolvers from major manufacturers
  • Optimized size, weight and volume
  • Greater durability in aggressive applications, thanks to pur's robust cover.
  • Resistant to contact with lubricants based on mineral oil, dilute acids, aqueous alkaline solutions and other chemical agents
  • Extended temperature range for applications in severe environmental conditions

Scope of use

  • Connection cable between the servo controller and the encoder/resolver.
  • Connection cable between the servo controller and the variable speed drives
  • For cable chains or moving parts of machines
  • Especially suitable for wet areas of machine tools and transfer lines
  • Assembly lines, production lines, in any type of machinery.
  • For indoor and outdoor use

Product features

  • Fire performance: UL/CSA VW-1, FT1 IEC/EN 60332-1-2
  • Halogen-free materials
  • Low-capacity design
  • Resistant to abrasion and cuts
  • Oil resistant

Reference Standards / Approvals

  • UL AWM Style 20236
  • CSA AWM IA/B; IIA/B FT 1
  • UL File No. E63634
  • Use on cable chains: please pay attention to the assembly guidelines in Appendix T3.

Product composition

  • Conductor of copper tarnished with fine thread or extra fine thread
  • Conductor isolation: polypropylene (PP)
  • Conductors (or pairs of conductors) braided into layers or bundles
  • For additional information, see the datasheet
  • Nonwoven envelope
  • Polyurethane cover (PUR), green (RAL 6018)

ETS Classification 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class Description: Control Cable

ETTIM Rating 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control Line

Driver Identification Code

  • See the details in the ÖLFLEX® SERVO FD 798 CP data sheet

Driver training

  • Thin yarn or braided extra-thin yarn

Minimum radius of curvature

  • Flexible: from 7.5 x outside diameter
  • Fixed installation: 4 x outside diameter

Nominal voltage

  • IEC: 30 V
  • UL & CSA: 30 V

Test voltage

  • Conductor/conductor: 1500 V rms
  • Driver/display: 750 V rms

Temperature range

  • Flexible use: -40°C to +90°C (UL/CSA: +80°C)
  • Fixed installation: -50°C to +90°C (UL/CSA: +80°C)

Continuous bending cycles

  • See the selection table A2-1 in the annex to our online catalogue
