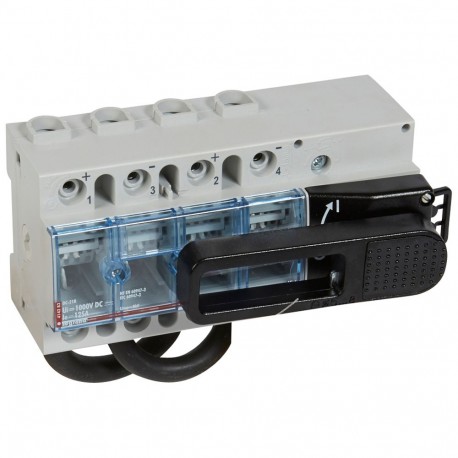

SECC ROT APL PV 125A 1000V Modular direct current switch-disconnector 1000V= for photovoltaic application - 125A - 9 modules Modular direct current switch-disconnector 1000V - 125A

Connectors > Switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A rotary application switch, represented by the Ime 414283 IME SECC ROT APL PV 125A 1000V, provides reliable circuit isolation in photovoltaic and industrial power distribution networks. These panel-mounted control devices allow operators to securely interrupt high-voltage direct or alternating currents during maintenance routines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 1000 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 1.5 kA
  • Voltage release optional (EF007491): No
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 2
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): No
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Short thumb-grip
  • Conditioned rated short-circuit current Iq (EF001444): 1500 kA
  • Rated permanent current Iu (EF001389): 125 A

More info

▲
Running as a main switchYes
Operation as a maintenance/repair switchYes
Operation as a safety switchYes
Execution as an emergency stop deviceYes
Execution as a switch-inverterNo
Maximum Rated Operating Voltage Ue AC1000 V
Rated Operating Voltage (Min-Max)1000-1000 V
Permanent nominal current Iu125 A
Icw short-duration rated current resistance1.5 kA
Conditional Short-Circuit Current Rating Iq1500 kA
Number of poles2
Number of auxiliary contacts normally closed0
Number of auxiliary contacts normally open0
Number of auxiliary contacts as change contact0
Optional motorized driveNo
Integrated motorized driveNo
Optional Tension ReleaseNo
Device constructionFixed integrated technology for integrated device
Floor MountNo
Suitable for 4-hole front mountingYes
Suitable for center front mountingYes
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Drive element colorRed
Execution of the actuator elementShort swivel handle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP2X
