View larger
Images are for illustrative purposes only. Please refer to data sheet for details

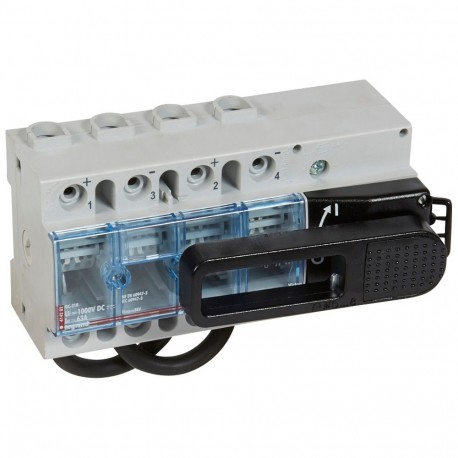

414282 IME SECC ROT APL FV 63A 1000V
414282
414282
IME
10 Pcs.
SECC ROT APL FV 63A 1000V
Modular direct current switch-disconnector 1000V= for photovoltaic application - 63A - 9 modules
Modular direct current switch-disconnector 1000V - 63A
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | Yes |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | Yes |
| Execution as a switch-inverter | No |
| Maximum Rated Operating Voltage Ue AC | 1000 V |
| Rated Operating Voltage (Min-Max) | 1000-1000 V |
| Permanent nominal current Iu | 63 A |
| Icw short-duration rated current resistance | 0.8 kA |
| Conditional Short-Circuit Current Rating Iq | 800 kA |
| Number of poles | 2 |
| Number of auxiliary contacts normally closed | 0 |
| Number of auxiliary contacts normally open | 0 |
| Number of auxiliary contacts as change contact | 0 |
| Optional motorized drive | No |
|---|---|
| Integrated motorized drive | No |
| Optional Tension Release | No |
| Device construction | Fixed integrated technology for integrated device |
| Floor Mount | No |
| Suitable for 4-hole front mounting | Yes |
| Suitable for center front mounting | Yes |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Drive element color | Red |
| Execution of the actuator element | Short swivel handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
| Degree of protection (IP), front | IP2X |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 0.8 kA |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 2 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Short thumb-grip |
| Conditioned rated short-circuit current Iq (EF001444) | 800 kA |
| Rated permanent current Iu (EF001389) | 63 A |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Colour control element (EF007167) | Red |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 1000 V |
| Degree of protection (IP), front side (EF003118) | IP2X |
