View larger
Images are for illustrative purposes only. Please refer to data sheet for details

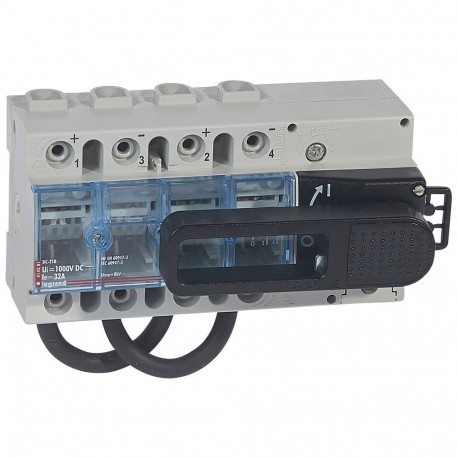

414281 IME SECC ROT APL FV 32A 1000V
414281
414281
IME
1 Pcs.
SECC ROT APL FV 32A 1000V
Modular direct current switch-disconnector 1000V= for photovoltaic application - 32A - 9 modules
Modular direct current switch-disconnector 1000V - 32A
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | Yes |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | Yes |
| Execution as a switch-inverter | No |
| Maximum Rated Operating Voltage Ue AC | 1000 V |
| Rated Operating Voltage (Min-Max) | 1000-1000 V |
| Permanent nominal current Iu | 32 A |
| Icw short-duration rated current resistance | 0.5 kA |
| Conditional Short-Circuit Current Rating Iq | 500 kA |
| Number of poles | 2 |
| Number of auxiliary contacts normally closed | 0 |
| Number of auxiliary contacts normally open | 0 |
| Number of auxiliary contacts as change contact | 0 |
| Optional motorized drive | No |
|---|---|
| Integrated motorized drive | No |
| Optional Tension Release | No |
| Device construction | Fixed integrated technology for integrated device |
| Floor Mount | No |
| Suitable for 4-hole front mounting | Yes |
| Suitable for center front mounting | Yes |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Drive element color | Red |
| Execution of the actuator element | Short swivel handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
| Degree of protection (IP), front | IP2X |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 0.5 kA |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 2 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Short thumb-grip |
| Conditioned rated short-circuit current Iq (EF001444) | 500 kA |
| Rated permanent current Iu (EF001389) | 32 A |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Colour control element (EF007167) | Red |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 1000 V |
| Degree of protection (IP), front side (EF003118) | IP2X |
