414246 IME INTERR SECC 1000V DC 63A

414246

414246

IME

10 Pcs.

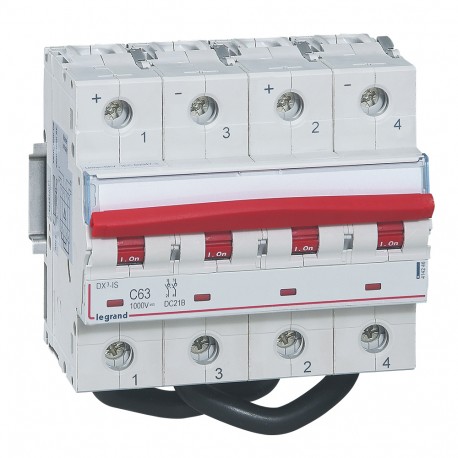

INTERR SECC 1000V DC 63A Modular switch-disconnector with direct current handle 1000V= for photovoltaic application - 63A - 6 modules Modular switch-disconnector with direct current handle 1000V - 63A

Connectors > Switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The IME 414246 is a housed DC disconnector switch engineered to manage photovoltaic systems and direct current industrial infrastructure. Safety switches of this classification allow technicians to securely disconnect high-voltage DC lines during servicing and emergency events.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 1000 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 1 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 2
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): No
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 63 A
  • Suitable for front mounting 4-hole (EF007247): Yes

More info

▲
Modular switch-disconnector with handle for the control of electrical circuits powered by direct current 1000V= for photovoltaic application - 2P intensity 63A - 6 modules - use category DC 21B according to EN 60947-3
Running as a main switchYes
Operation as a maintenance/repair switchYes
Operation as a safety switchYes
Execution as an emergency stop deviceYes
Execution as a switch-inverterNo
Maximum Rated Operating Voltage Ue AC1000 V
Rated Operating Voltage (Min-Max)24-1000 V
Permanent nominal current Iu63 A
Permanent current assigned with AC-21, 400 V63 A
Icw short-duration rated current resistance1 kA
Number of poles2
Number of auxiliary contacts normally closed0
Number of auxiliary contacts normally open0
Number of auxiliary contacts as change contact3
Optional motorized driveYes
Integrated motorized driveNo
Optional Tension ReleaseYes
Device constructionComplete device in housing
Floor MountYes
Suitable for 4-hole front mountingYes
Suitable for center front mountingNo
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Drive element colorRed
Execution of the actuator elementHandle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP20
