View larger
Images are for illustrative purposes only. Please refer to data sheet for details

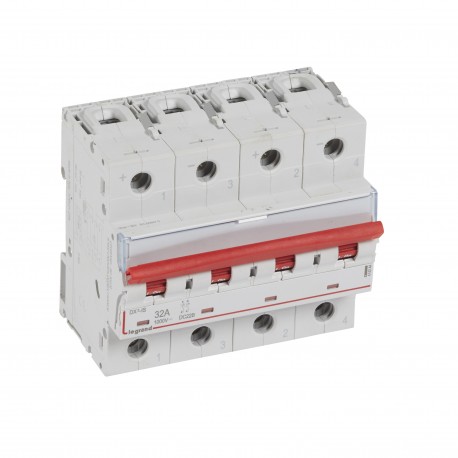

414244 IME INTERR SECC 1000V DC 32A
414244
414244
IME
10 Pcs.
INTERR SECC 1000V DC 32A
Modular switch-disconnector with direct current handle 1000V= for photovoltaic application - 32A - 6 modules
Modular switch-disconnector with direct current handle 1000V - 32A
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Modular switch-disconnector with handle for the control of electrical circuits powered by direct current 1000V= for photovoltaic application - 2P intensity 32A - 6 modules - usage category DC 21B according to EN 60947-3
| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | Yes |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | Yes |
| Execution as a switch-inverter | No |
| Maximum Rated Operating Voltage Ue AC | 1000 V |
| Rated Operating Voltage (Min-Max) | 24-1000 V |
| Permanent nominal current Iu | 32 A |
| Permanent current assigned with AC-21, 400 V | 32 A |
| Icw short-duration rated current resistance | 1 kA |
| Number of poles | 2 |
| Number of auxiliary contacts normally closed | 0 |
| Number of auxiliary contacts normally open | 0 |
| Number of auxiliary contacts as change contact | 3 |
| Optional motorized drive | Yes |
|---|---|
| Integrated motorized drive | No |
| Optional Tension Release | Yes |
| Device construction | Complete device in housing |
| Floor Mount | Yes |
| Suitable for 4-hole front mounting | Yes |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Drive element color | Red |
| Execution of the actuator element | Handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
| Degree of protection (IP), front | IP20 |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 1 kA |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Complete device in housing |
| Number of poles (EF001391) | 2 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Toggle |
| Rated permanent current Iu (EF001389) | 32 A |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | Yes |
| Colour control element (EF007167) | Red |
| Rated permanent current at AC-21, 400 V (EF009165) | 32 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 24 V |
| Degree of protection (IP), front side (EF003118) | IP20 |
