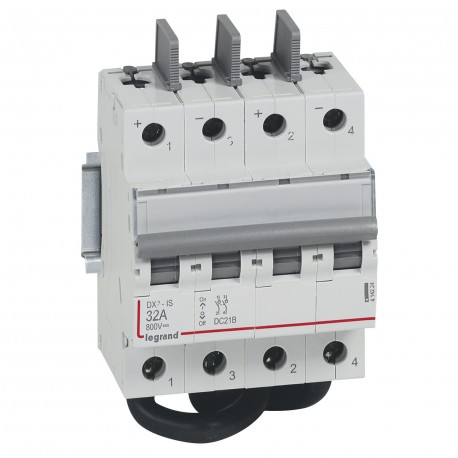

414224 IME SWITCH/SECC 2P 32A 800v

414224

414224

IME

10 Pcs.

SWITCH/SECC 2P 32A 800v= Direct current disconnect switch 800V= - 32A - 4 modules

Connectors > Switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Ime 414224 is a housed 2-pole safety switch designed to provide secure local circuit isolation and emergency shutdown capabilities. Facilities utilize enclosed switches of this type near machinery to ensure rapid power disconnection by maintenance staff.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): Yes
  • Max. rated operation voltage Ue AC (EF007355): 800 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Rated short-time withstand current lcw (EF007050): 0.384 kA
  • Voltage release optional (EF007491): Yes
  • Device construction (EF008240): Complete device in housing
  • Number of poles (EF001391): 2
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): Yes
  • Motor drive integrated (EF006697): No
  • Version as reversing switch (EF009408): No
  • Type of control element (EF006976): Toggle
  • Rated permanent current Iu (EF001389): 32 A
  • Suitable for front mounting 4-hole (EF007247): Yes

More info

▲
2-pole switch/disconnector 32A 800V. 800V= - Usage category DC 21B according to EN 60947-3 - Double cut contacts - Fully visible cut - Use the spacing modules ref. 4 063 07 between 2 consecutive devices Disconnector switches - Fully visible cut - For use near the UPS - Nominal current: 32A - Number of poles: 2 - Number of modules: 4. Photovoltaic protection - direct current disconnect switches - Mounting on symmetrical DIN rail EN 60715.
Running as a main switchYes
Operation as a maintenance/repair switchYes
Operation as a safety switchYes
Execution as an emergency stop deviceYes
Execution as a switch-inverterNo
Maximum Rated Operating Voltage Ue AC800 V
Rated Operating Voltage (Min-Max)24-800 V
Permanent nominal current Iu32 A
Permanent current assigned with AC-21, 400 V32 A
Icw short-duration rated current resistance0.384 kA
Number of poles2
Number of auxiliary contacts normally closed0
Number of auxiliary contacts normally open0
Number of auxiliary contacts as change contact3
Optional motorized driveYes
Integrated motorized driveNo
Optional Tension ReleaseYes
Device constructionComplete device in housing
Floor MountYes
Suitable for 4-hole front mountingYes
Suitable for center front mountingNo
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Drive element colorRed
Execution of the actuator elementHandle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP20

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
