View larger
Images are for illustrative purposes only. Please refer to data sheet for details

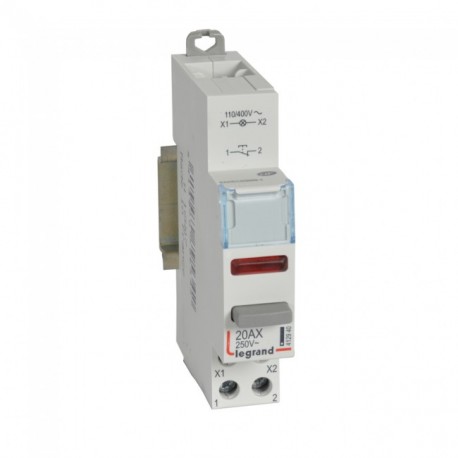

412940 IME *NC + RED LED 1MOD PUSH BUTTON
412940
412940
IME
10 Pcs.
*NC + RED LED 1MOD PUSH BUTTON
20A Push Button - 250V~ NA + Red LED
Automation > Push button for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Modular switch with 1 NC push button + red LED light with dual functions, AC 12 breaking power according to IEC 60947-5-1, 20 A, 250V. Allows the feeding comb to pass through. Conforms to IEC 60669-1.
| Number of Normally Closed Contacts | 1 |
|---|---|
| Number of contacts normally opened | 0 |
| Number of investor contacts | 0 |
| Switching Current | 20 A |
| Switching voltage | 250 V |
| Type of voltage | AC |
| With signal lamp | Yes |
| Hood color | Red |
| Lamp | LED |
| Lamp power max. | 0.5 W |
| Lamp Voltage (Min-Max) | 110-400 V |
| Button color | Grey |
| Width in number of modular spaces | 1 |
| Installation Depth | 44 mm |
| Protection Class (IP) | IP20 |
| Width | 17.8 mm |
| Height | 90 mm |
|---|---|
| Depth | 73.5 mm |
| Impact resistance | IK04 |
| Operating Temperature (Min-Max) | -25-70 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Lighting Type | Interchangeable LED |
| Estimated bulb life | 100000 h |
| Direction of the electricity supply | From the bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Terminal Capacity (Min-Max) | 0.75-4 mm² |
| Label Space/Print Area | Yes |
| Type of mounting | DIN Lane |
| Feature Name | Feature Value |
|---|---|
| Max. lamp power (EF000260) | 0.5 W |
| Lamp voltage (EF008856) | 110 V |
| Degree of protection (IP) (EF005474) | IP20 |
| Switching current (EF000188) | 20 A |
| Number of contacts as change-over contact (EF008257) | 0 |
| Width in number of modular spacings (EF002950) | 1 |
| With signal lamp (EF000198) | Yes |
| Voltage type (EF000187) | AC |
| Lamp type (EF002423) | LED |
| Switching voltage (EF003586) | 250 V |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Colour button (EF000190) | Grey |
| Colour calotte (EF004668) | Red |
| Built-in depth (EF000218) | 44 mm |
