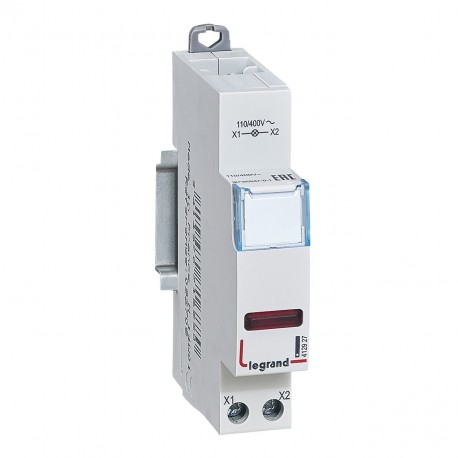

IME 412927 412927 IME *RED PILOT 1MOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412927 IME *RED PILOT 1MOD

412927

412927

IME

10 Pcs.

*RED PILOT 1MOD Pilot light - 250V~ - red

Automation > Indicator light for distribution board

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

412927 IME *RED PILOT 1MOD serves as a panel-mounted pilot light designed to give clear optical warnings or status alerts in electrical switchgear installations. Pilot lights are fundamental safety components used across manufacturing lines and power distribution units. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. lamp power (EF000260): 0.5 W
  • Degree of protection (IP) (EF005474): IP40
  • Width in number of modular spacings (EF002950): 1
  • Voltage type (EF000187): AC
  • Lamp type (EF002423): LED
  • Colour calotte (EF004668): Red
  • Built-in depth (EF000218): 44 mm
  • Rated voltage (EF000228): 400 V

More info

▲
Pilot 1 Red module. LED indicators - Equipped with a non-interchangeable LED - LED lifespan: 100,000 h - LED consumption: - 0.17 W at 230V~/ - 0.11 W at 24V~ - Comply with IEC 60947-5-1 standard - Accept the passage of the power comb Simple - 110/400V~ - Red - Number of modules: 1. Pushbuttons - switches and pilots.
Hood colorRed
LampLED
Lamp BaseOther
Lamp power max.0.5 W
Nominal voltage400 V
Type of voltageAC
Width in number of modular spaces1
Installation Depth44 mm
Protection Class (IP)IP40
Width17.8 mm
Height93.4 mm
Depth67.3 mm
Impact resistanceIK04
Operating Temperature (Min-Max)-25-70 °C
Storage Temperature (Min-Max)-40-70 °C
Frequency (Min-Max)50-60 Hz
Estimated bulb life100000 h
Direction of the electricity supplyFrom the top or bottom
Display of markings on the connection terminalsYes
ColourGrey
RAL number7035
Halogen-freeYes
Connection MethodScrew-on terminal
Terminal Capacity (Min-Max)0.75-4 mm²
Connection typeCable
Label Space/Print AreaYes
Type of mountingDIN Lane
