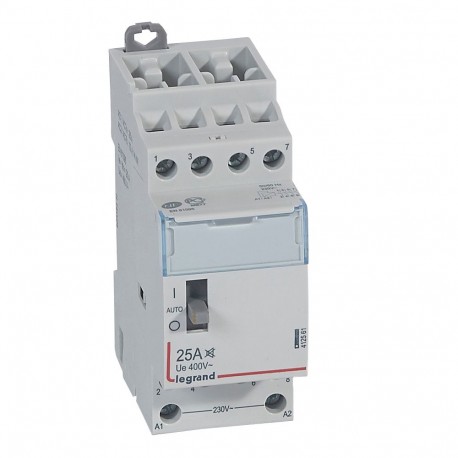

412561 IME CONTACTOR 25A 4NA 230V SILENC
412561
412561
IME
1 Pcs.
Automation > Installation contactor for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A contactor, such as the IME model 412561, is an electromagnetic switch designed for frequent making and breaking of electrical power circuits in industrial and commercial applications. This device safely routes heavy currents to connected equipment based on control system inputs.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Max. load fluorescent lamp (EF004971): 2100 VA
- Rated operation current (EF007679): 25 A
- Degree of protection (IP) (EF005474): IP2X
- Width in number of modular spacings (EF002950): 2
- Max. incandescent lamp load (EF004952): 3000 W
- Additional equipment possible (EF008148): Yes
- Max. load fluorescent lamp (parallel compensated) (EF004973): 2800 VA
- Max. load fluorescent lamp (Duo circuit) (EF004972): 2200 VA
- Voltage type (excitation voltage) (EF005293): AC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 4
- Slider for hand switch (EF005240): Yes
- Voltage type (operating voltage) (EF005294): AC
- Rated operating voltage (EF001435): 400 V
- Built-in depth (EF000218): 44 mm
- Rated excitation voltage (EF008409): 195 V
More info
▲| Rated Operating Voltage (Min-Max) | 400-400 V |
|---|---|
| Rated Operating Current | 25 A |
| Control voltage rating (Min-Max) | 195-253 V |
| Operating voltage type | AC |
| Voltage Type (Excitation Voltage) | AC |
| Number of contacts normally opened | 4 |
| Number of Normally Closed Contacts | 0 |
| Maximum incandescent lamp load | 3000 W |
| Maximum fluorescent lamp load | 2100 VA |
| Maximum fluorescent lamp load (duo circuit) | 2200 VA |
| Maximum fluorescent lamp load (parallel-compensated) | 2800 VA |
|---|---|
| Slider for manual operation | Yes |
| Width in number of modular spaces | 2 |
| Installation Depth | 44 mm |
| Additional equipment possible | Yes |
| Protection Class (IP) | IP2X |
| Width | 35.6 mm |
| Height | 94.9 mm |
| Depth | 66.3 mm |
