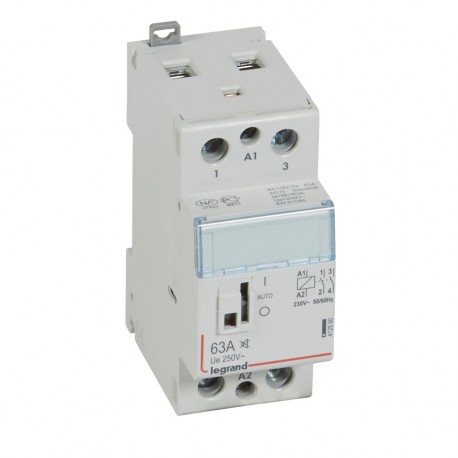

412560 IME CONTACTOR 63A 2NA 230V SILENC
412560
412560
IME
1 Pcs.
Automation > Installation contactor for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Ime contactor 412560 provides silent switching performance for high-current power distribution and building automation applications. Engineers deploy these specialized low-noise components to manage heavy electrical loads without disruptive mechanical hums. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Max. load fluorescent lamp (EF004971): 4700 VA
- Rated operation current (EF007679): 63 A
- Degree of protection (IP) (EF005474): IP2X
- Width in number of modular spacings (EF002950): 2
- Max. incandescent lamp load (EF004952): 8000 W
- Additional equipment possible (EF008148): Yes
- Max. load fluorescent lamp (parallel compensated) (EF004973): 1700 VA
- Max. load fluorescent lamp (Duo circuit) (EF004972): 5000 VA
- Voltage type (excitation voltage) (EF005293): AC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 2
- Slider for hand switch (EF005240): Yes
- Voltage type (operating voltage) (EF005294): AC
- Rated operating voltage (EF001435): 250 V
- Built-in depth (EF000218): 44 mm
- Rated excitation voltage (EF008409): 195 V
More info
▲| Rated Operating Voltage (Min-Max) | 250-250 V |
|---|---|
| Rated Operating Current | 63 A |
| Control voltage rating (Min-Max) | 195-253 V |
| Operating voltage type | AC |
| Voltage Type (Excitation Voltage) | AC |
| Number of contacts normally opened | 2 |
| Number of Normally Closed Contacts | 0 |
| Maximum incandescent lamp load | 8000 W |
| Maximum fluorescent lamp load | 4700 VA |
| Maximum fluorescent lamp load (duo circuit) | 5000 VA |
| Maximum fluorescent lamp load (parallel-compensated) | 1700 VA |
|---|---|
| Slider for manual operation | Yes |
| Width in number of modular spaces | 2 |
| Installation Depth | 44 mm |
| Additional equipment possible | Yes |
| Protection Class (IP) | IP2X |
| Width | 68 mm |
| Height | 94 mm |
| Depth | 35.6 mm |
