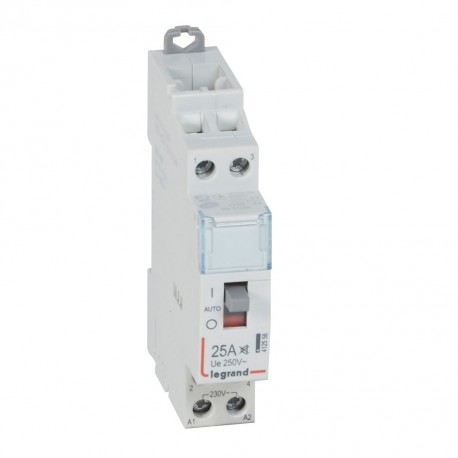

412558 IME CONTACTOR 25A 2NA 230V SILENC
412558
412558
IME
1 Pcs.
Automation > Installation contactor for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A silent contactor, manufactured by IME under part number 412558, provides low-noise electrical switching for distribution boards in noise-sensitive environments such as offices, hotels, and residential buildings. These units efficiently handle lighting and auxiliary power circuits.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Max. load fluorescent lamp (EF004971): 2100 VA
- Rated operation current (EF007679): 25 A
- Degree of protection (IP) (EF005474): IP2X
- Width in number of modular spacings (EF002950): 1
- Max. incandescent lamp load (EF004952): 3000 W
- Additional equipment possible (EF008148): Yes
- Max. load fluorescent lamp (parallel compensated) (EF004973): 2800 VA
- Max. load fluorescent lamp (Duo circuit) (EF004972): 2200 VA
- Voltage type (excitation voltage) (EF005293): AC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 2
- Slider for hand switch (EF005240): Yes
- Voltage type (operating voltage) (EF005294): AC
- Rated operating voltage (EF001435): 250 V
- Built-in depth (EF000218): 44 mm
- Rated excitation voltage (EF008409): 195 V
More info
▲| Rated Operating Voltage (Min-Max) | 250-250 V |
|---|---|
| Rated Operating Current | 25 A |
| Control voltage rating (Min-Max) | 195-253 V |
| Operating voltage type | AC |
| Voltage Type (Excitation Voltage) | AC |
| Number of contacts normally opened | 2 |
| Number of Normally Closed Contacts | 0 |
| Maximum incandescent lamp load | 3000 W |
| Maximum fluorescent lamp load | 2100 VA |
| Maximum fluorescent lamp load (duo circuit) | 2200 VA |
| Maximum fluorescent lamp load (parallel-compensated) | 2800 VA |
|---|---|
| Slider for manual operation | Yes |
| Width in number of modular spaces | 1 |
| Installation Depth | 44 mm |
| Additional equipment possible | Yes |
| Protection Class (IP) | IP2X |
| Width | 17.8 mm |
| Height | 94.9 mm |
| Depth | 66.3 mm |
