View larger
Images are for illustrative purposes only. Please refer to data sheet for details

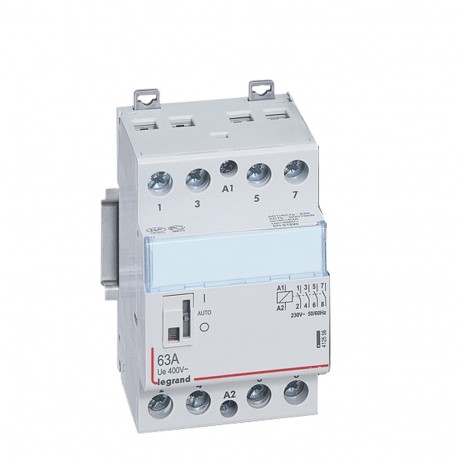

412556 IME CX3 CONTACT 230V 4NA 63A MAN
412556
412556
IME
1 Pcs.
CX3 CONTACT 230V 4NA 63A MAN
Contactor with coil 230V~ - 4P - 250V~ - 63A - 4 NA - 3 modules
Automation > Installation contactor for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
The CX³ range includes power or domestic contactors, as well as remote switches and indicator lights and switches with modular pushbuttons. All of these control devices are mounted on divider boxes and accept the passage of the power comb. Domestic contactors allow the management of the peak/off-peak rate of water heaters, for example, power contactors allow remote control of a load by means of a switch with or without a handle. Impulse switches are used to control the power supply to lighting circuits from different locations. Push buttons and push button switches are used to control electrical circuits.
| Rated Operating Voltage (Min-Max) | 400-400 V |
|---|---|
| Rated Operating Current | 63 A |
| Control voltage rating (Min-Max) | 195-253 V |
| Operating voltage type | AC |
| Voltage Type (Excitation Voltage) | AC |
| Number of contacts normally opened | 4 |
| Number of Normally Closed Contacts | 0 |
| Maximum incandescent lamp load | 8000 W |
| Maximum fluorescent lamp load | 4700 VA |
| Maximum fluorescent lamp load (duo circuit) | 5000 VA |
| Maximum fluorescent lamp load (parallel-compensated) | 1700 VA |
|---|---|
| Slider for manual operation | Yes |
| Width in number of modular spaces | 3 |
| Installation Depth | 44 mm |
| Additional equipment possible | Yes |
| Protection Class (IP) | IP2X |
| Width | 68 mm |
| Height | 94 mm |
| Depth | 53.4 mm |
| Feature Name | Feature Value |
|---|---|
| Max. load fluorescent lamp (EF004971) | 4700 VA |
| Rated operation current (EF007679) | 63 A |
| Degree of protection (IP) (EF005474) | IP2X |
| Width in number of modular spacings (EF002950) | 3 |
| Max. incandescent lamp load (EF004952) | 8000 W |
| Additional equipment possible (EF008148) | Yes |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 1700 VA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 5000 VA |
| Voltage type (excitation voltage) (EF005293) | AC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 4 |
| Slider for hand switch (EF005240) | Yes |
| Voltage type (operating voltage) (EF005294) | AC |
| Rated operating voltage (EF001435) | 400 V |
| Built-in depth (EF000218) | 44 mm |
| Rated excitation voltage (EF008409) | 195 V |
