View larger
Images are for illustrative purposes only. Please refer to data sheet for details

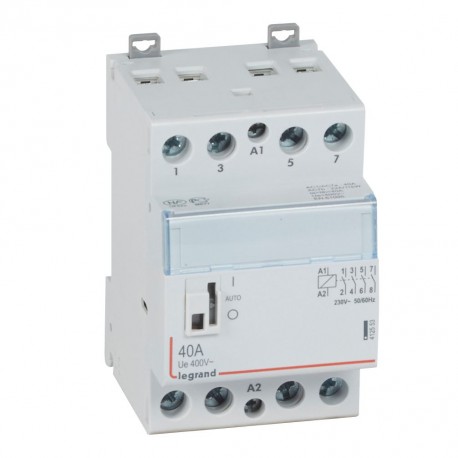

412553 IME CONTACTOR 40A 4NA 230V
412553
412553
IME
1 Pcs.
CONTACTOR 40A 4NA 230V
Contactor with coil 230V~ - 4P - 250V~ - 40A - 4 NA - 3 modules
Automation > Installation contactor for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
40A 4NA 230V Contactor. Contactors with coil 230V~ - Forced running contactors without automatic return or stop to ensure the test function and repair Tetrapolar 400V~ - References 4 125 53/56/57 can be converted to group head with the connection module for contactor ref. 4 063 02 - Cover accessible after opening the shutter - Max.: 40A - Contact type: 4 NA - Number of modules: 3. CX³ contactors - with manual control - Comply with EN 61095 standard - Accept feed comb passage up to 25A - Mounting on symmetrical profile.
| Rated Operating Voltage (Min-Max) | 400-400 V |
|---|---|
| Rated Operating Current | 40 A |
| Control voltage rating (Min-Max) | 195-253 V |
| Operating voltage type | AC |
| Voltage Type (Excitation Voltage) | AC |
| Number of contacts normally opened | 4 |
| Number of Normally Closed Contacts | 0 |
| Maximum incandescent lamp load | 5000 W |
| Maximum fluorescent lamp load | 3100 VA |
| Maximum fluorescent lamp load (duo circuit) | 3400 VA |
| Maximum fluorescent lamp load (parallel-compensated) | 1400 VA |
|---|---|
| Slider for manual operation | Yes |
| Width in number of modular spaces | 3 |
| Installation Depth | 44 mm |
| Additional equipment possible | Yes |
| Protection Class (IP) | IP2X |
| Width | 68 mm |
| Height | 94 mm |
| Depth | 53.4 mm |
| Feature Name | Feature Value |
|---|---|
| Max. load fluorescent lamp (EF004971) | 3100 VA |
| Rated operation current (EF007679) | 40 A |
| Degree of protection (IP) (EF005474) | IP2X |
| Width in number of modular spacings (EF002950) | 3 |
| Max. incandescent lamp load (EF004952) | 5000 W |
| Additional equipment possible (EF008148) | Yes |
| Max. load fluorescent lamp (parallel compensated) (EF004973) | 1400 VA |
| Max. load fluorescent lamp (Duo circuit) (EF004972) | 3400 VA |
| Voltage type (excitation voltage) (EF005293) | AC |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 4 |
| Slider for hand switch (EF005240) | Yes |
| Voltage type (operating voltage) (EF005294) | AC |
| Rated operating voltage (EF001435) | 400 V |
| Built-in depth (EF000218) | 44 mm |
| Rated excitation voltage (EF008409) | 195 V |
