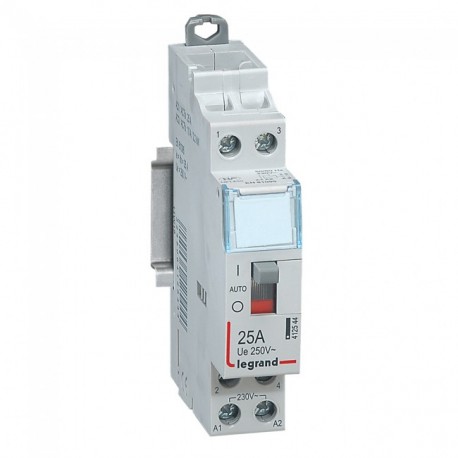

412544 IME *CONTACTOR 25A 2NA 230V
412544
412544
IME
2 Pcs.
*CONTACTOR 25A 2NA 230V
Contactor with coil 230V~ - 2P - 250V~ - 25A - 2 NA - 1 module
Automation > Installation contactor for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Manufactured by Ime, the 412544 contactor is an essential component in electrical distribution assemblies for automating loads, commercial equipment, and lighting infrastructure.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Max. load fluorescent lamp (EF004971): 2100 VA
- Rated operation current (EF007679): 25 A
- Degree of protection (IP) (EF005474): IP2X
- Width in number of modular spacings (EF002950): 1
- Max. incandescent lamp load (EF004952): 3000 W
- Additional equipment possible (EF008148): Yes
- Max. load fluorescent lamp (parallel compensated) (EF004973): 1000 VA
- Max. load fluorescent lamp (Duo circuit) (EF004972): 2200 VA
- Voltage type (excitation voltage) (EF005293): AC
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 2
- Slider for hand switch (EF005240): Yes
- Voltage type (operating voltage) (EF005294): AC
- Rated operating voltage (EF001435): 250 V
- Built-in depth (EF000218): 44 mm
- Rated excitation voltage (EF008409): 195 V
More info
▲
Contactor 25A 2NA 230V. Contactors with coil 230V~ - Forced running contactors without automatic return or stop to ensure the test function and repair Bipolar 250V~ - Max I: 25A - Contact type: 2 NA - Number of modules: 1. CX³ contactors - with manual control - Comply with EN 61095 standard - Accept the passage of the feed comb up to 25A - Mounting on symmetrical profile.
| Rated Operating Voltage (Min-Max) | 250-250 V |
|---|---|
| Rated Operating Current | 25 A |
| Control voltage rating (Min-Max) | 195-253 V |
| Operating voltage type | AC |
| Voltage Type (Excitation Voltage) | AC |
| Number of contacts normally opened | 2 |
| Number of Normally Closed Contacts | 0 |
| Maximum incandescent lamp load | 3000 W |
| Maximum fluorescent lamp load | 2100 VA |
| Maximum fluorescent lamp load (duo circuit) | 2200 VA |
| Maximum fluorescent lamp load (parallel-compensated) | 1000 VA |
| Slider for manual operation | Yes |
| Width in number of modular spaces | 1 |
| Installation Depth | 44 mm |
| Additional equipment possible | Yes |
| Protection Class (IP) | IP2X |
| Width | 17.8 mm |
|---|---|
| Height | 94.9 mm |
| Depth | 72.6 mm |
| Impact resistance | IK04 |
| Operating Temperature (Min-Max) | -25-60 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Frequency (Min-Max) | 50-60 Hz |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Terminal Capacity (Min-Max) | 0.75-6 mm² |
| Connection type | Cable |
| Label Space/Print Area | Yes |
| Type of mounting | DIN Lane |
