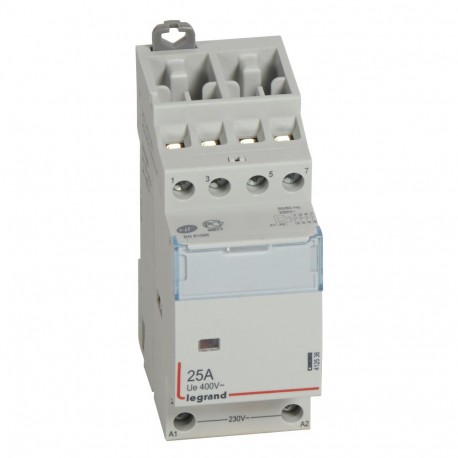

IME 412536 412536 IME CONTACTOR 25A 4NC 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412536 IME CONTACTOR 25A 4NC 230V

412536

412536

IME

4 Pcs.

CONTACTOR 25A 4NC 230V Contactor with coil 230V~ - 4P - 400V~ - 25A - 4 NC - 2 modules

Automation > Installation contactor for distribution board

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An IME contactor (model 412536) operates as an electromagnetic switching device designed to manage electrical loads efficiently in commercial and light industrial switchboards. Modular contactors handle routine power distribution tasks reliably.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. load fluorescent lamp (EF004971): 2100 VA
  • Rated operation current (EF007679): 25 A
  • Degree of protection (IP) (EF005474): IP2X
  • Width in number of modular spacings (EF002950): 2
  • Max. incandescent lamp load (EF004952): 3000 W
  • Additional equipment possible (EF008148): Yes
  • Max. load fluorescent lamp (parallel compensated) (EF004973): 1000 VA
  • Max. load fluorescent lamp (Duo circuit) (EF004972): 2200 VA
  • Voltage type (excitation voltage) (EF005293): AC
  • Number of contacts as normally closed contact (EF008255): 4
  • Number of contacts as normally open contact (EF008256): 0
  • Slider for hand switch (EF005240): Yes
  • Voltage type (operating voltage) (EF005294): AC
  • Rated operating voltage (EF001435): 400 V
  • Built-in depth (EF000218): 44 mm
  • Rated excitation voltage (EF008409): 195 V

More info

▲
25A 4NC 230V Contactor. Contactors with coil 230V~ Tetrapolar 400V~ - I max.: 25A - Contact type: 4 NC - Number of modules: 2. CX³ contactors - without manual control - Comply with EN 61095 standard - Accept the passage of the feed comb up to 25A - Mounting on symmetrical profile.
Rated Operating Voltage (Min-Max)400-400 V
Rated Operating Current25 A
Control voltage rating (Min-Max)195-253 V
Operating voltage typeAC
Voltage Type (Excitation Voltage)AC
Number of contacts normally opened0
Number of Normally Closed Contacts4
Maximum incandescent lamp load3000 W
Maximum fluorescent lamp load2100 VA
Maximum fluorescent lamp load (duo circuit)2200 VA
Maximum fluorescent lamp load (parallel-compensated)1000 VA
Slider for manual operationYes
Width in number of modular spaces2
Installation Depth44 mm
Additional equipment possibleYes
Protection Class (IP)IP2X
Width35.6 mm
Height94.9 mm
Depth67.3 mm
