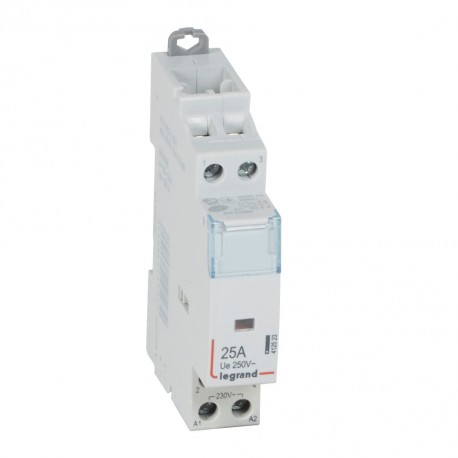

IME 412523 412523 IME *CONTACTOR 25A 2NA 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412523 IME *CONTACTOR 25A 2NA 230V

412523

412523

IME

1 Pcs.

*CONTACTOR 25A 2NA 230V Contactor with coil 230V~ - 2P - 250V~ - 25A - 2 NA - 1 module

Automation > Installation contactor for distribution board

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Ime contactor 412523 functions as an electromechanical switching device utilized for remotely controlling electrical loads and power circuits within distribution boards. Technicians typically apply these components to manage lighting networks, heating elements, and motor loads requiring frequent cycling. Final pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. load fluorescent lamp (EF004971): 2100 VA
  • Rated operation current (EF007679): 25 A
  • Degree of protection (IP) (EF005474): IP2X
  • Width in number of modular spacings (EF002950): 1
  • Max. incandescent lamp load (EF004952): 3000 W
  • Additional equipment possible (EF008148): Yes
  • Max. load fluorescent lamp (parallel compensated) (EF004973): 1000 VA
  • Max. load fluorescent lamp (Duo circuit) (EF004972): 2200 VA
  • Voltage type (excitation voltage) (EF005293): AC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Slider for hand switch (EF005240): Yes
  • Voltage type (operating voltage) (EF005294): AC
  • Rated operating voltage (EF001435): 250 V
  • Built-in depth (EF000218): 44 mm
  • Rated excitation voltage (EF008409): 195 V

More info

▲
Contactor 25A 2NA 230V. Contactors with coil 230V~ Bipolar 250V~ - I max.: 25A - Contact type: 2 NA - Number of modules: 1. CX³ contactors - without manual control - Comply with EN 61095 standard - Accept the passage of the feed comb up to 25A - Mounting on symmetrical profile.
Rated Operating Voltage (Min-Max)250-250 V
Rated Operating Current25 A
Control voltage rating (Min-Max)195-253 V
Operating voltage typeAC
Voltage Type (Excitation Voltage)AC
Number of contacts normally opened2
Number of Normally Closed Contacts0
Maximum incandescent lamp load3000 W
Maximum fluorescent lamp load2100 VA
Maximum fluorescent lamp load (duo circuit)2200 VA
Maximum fluorescent lamp load (parallel-compensated)1000 VA
Slider for manual operationYes
Width in number of modular spaces1
Installation Depth44 mm
Additional equipment possibleYes
Protection Class (IP)IP2X
Width17.8 mm
Height94.9 mm
Depth67.3 mm
Impact resistanceIK04
Operating Temperature (Min-Max)-25-60 °C
Storage Temperature (Min-Max)-40-70 °C
Frequency (Min-Max)50-60 Hz
Display of markings on the connection terminalsYes
ColourGrey
RAL number7035
Halogen-freeYes
Terminal Capacity (Min-Max)0.75-6 mm²
Connection typeCable
Label Space/Print AreaYes
Type of mountingDIN Lane
