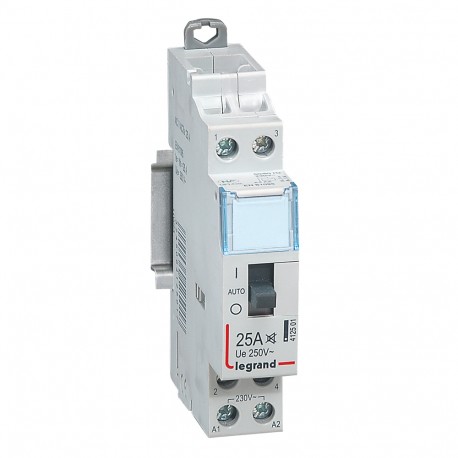

IME 412501 412501 IME *CONTACTOR 25A 2NA 230V View larger
Images are for illustrative purposes only. Please refer to data sheet for details

412501 IME *CONTACTOR 25A 2NA 230V

412501

412501

IME

1 Pcs.

*CONTACTOR 25A 2NA 230V Silent contactor - 230V~ - 2P - 250V~/25A - 2 NA

Automation > Installation contactor for distribution board

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An IME contactor (model 412501) serves as an electromagnetic switching device designed to manage electrical loads and facilitate automated control routines in industrial and commercial distribution panels.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Max. load fluorescent lamp (EF004971): 2100 VA
  • Rated operation current (EF007679): 25 A
  • Degree of protection (IP) (EF005474): IP2X
  • Width in number of modular spacings (EF002950): 1
  • Max. incandescent lamp load (EF004952): 3000 W
  • Additional equipment possible (EF008148): Yes
  • Max. load fluorescent lamp (parallel compensated) (EF004973): 1000 VA
  • Max. load fluorescent lamp (Duo circuit) (EF004972): 2200 VA
  • Voltage type (excitation voltage) (EF005293): AC
  • Number of contacts as normally closed contact (EF008255): 0
  • Number of contacts as normally open contact (EF008256): 2
  • Slider for hand switch (EF005240): Yes
  • Voltage type (operating voltage) (EF005294): AC
  • Rated operating voltage (EF001435): 250 V
  • Built-in depth (EF000218): 44 mm
  • Rated excitation voltage (EF008409): 195 V
