View larger
Images are for illustrative purposes only. Please refer to data sheet for details

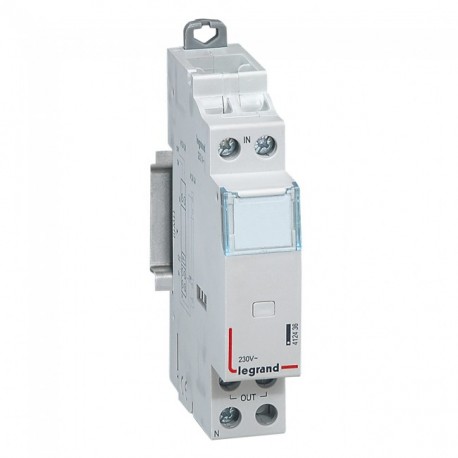

412436 IME MASTER CONTROL 230V
412436
412436
IME
1 Pcs.
MASTER CONTROL 230V
Control Assistant - General Centralized Multi-Group 230V~
Automation > Auxiliary device for distribution board devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Master control 230V. Control auxiliaries - They are mounted to the left of the standard switches - They can be associated with a signaling auxiliary General centralized control - Allows to control several groups of standard switches equipped with centralized controls - 230V~ - Connects to the centralized control terminals ref. 4 124 34 - Number of modules: 1. CX³ auxiliaries and compensator - for standard switches.
| Equipment Installation | Auxiliary switch/relay |
|---|---|
| function | Remote device |
| Width in number of modular spaces | 1 |
| Nominal voltage | 230 V |
| Type of voltage | AC |
|---|---|
| Self-tested for residual current function | No |
| Suitable for max.. No. of Poles of Main Contact Unit (Total) | 4 |
| Suitable for max.. Main Contact Unit Amperage | 16 A |
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Remote drive |
| Width in number of modular spacings (EF002950) | 1 |
| Suitable for max. current main contact unit (EF008730) | 16 A |
| Voltage type (EF000187) | AC |
| With auto test for earth leakage function (EF008727) | No |
| Rated voltage (EF000228) | 230 V |
| Device fitting (EF007826) | Auxiliary switch / relay |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 4 |
