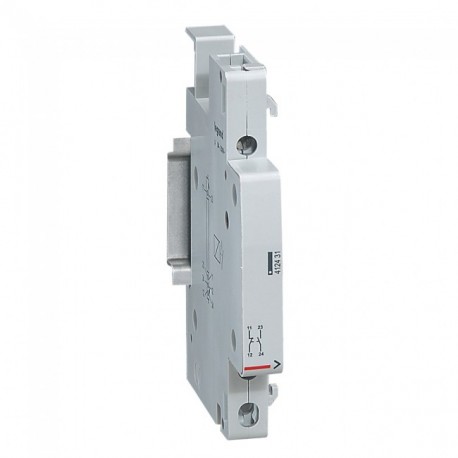

412431 IME CONTACT AUX. P/CONT 40A and 63A
412431
412431
IME
1 Pcs.
CONTACT AUX. P/CONT 40A and 63A
Auxiliary for 40 and 63A contactors - aux inverter contact - 250V~/5A - NC+NA
Automation > Auxiliary device for distribution board devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
412431 IME CONTACT AUX. P/CONT 40A and 63A mounts to high-current switching devices to report operational status changes to external monitoring equipment. Signaling switches ensure operators have real-time visibility into power distribution states.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Signalling switch
- Number of fault-signal switches (EF007613): 0
- Number of contacts as change-over contact (EF008257): 0
- Width in number of modular spacings (EF002950): 0.5
- Suitable for max. current main contact unit (EF008730): 63 A
- Voltage type (EF000187): AC
- Number of contacts as normally closed contact (EF008255): 1
- Number of contacts as normally open contact (EF008256): 1
- Rated switch current (EF006706): 5 A
- With auto test for earth leakage function (EF008727): No
- Rated voltage (EF000228): 250 V
- Device fitting (EF007826): Auxiliary switch / relay
More info
▲
Auxiliary contact for Contactor 40/63A. Signaling auxiliaries - Auxiliary inverter contacts - Allow standard signaling of the position status of the contacts of the product to which they are associated - For 40 and 63A contactors - Mounted to the left of the contactor - 1 maximum auxiliary - Max I: 5A - Voltage: 250V~ - 50/60 Hz - Contact: NC + NO - Number of modules: 0.5. Auxiliaries and connection module for CX³ contactors.
| Equipment Installation | Auxiliary switch/relay |
|---|---|
| function | Signal switch |
| Width in number of modular spaces | 0.5 |
| Number of contacts normally opened | 1 |
| Number of Normally Closed Contacts | 1 |
| Number of investor contacts | 0 |
| Number of error signal switches | 0 |
| Nominal switching current | 5 A |
| Nominal voltage | 250 V |
|---|---|
| Type of voltage | AC |
| Self-tested for residual current function | No |
| Suitable for max.. No. of Poles of Main Contact Unit (Total) | 4 |
| Suitable for max.. Main Contact Unit Amperage | 63 A |
| Width | 9 mm |
| Height | 83 mm |
| Depth | 66 mm |
