View larger
Images are for illustrative purposes only. Please refer to data sheet for details

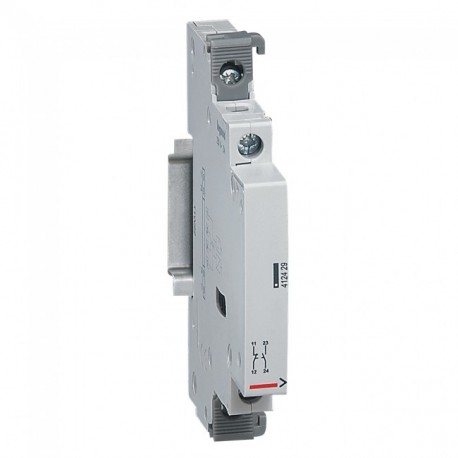

412429 IME NA+NC INV AUXILIARY CONTACTOR
412429
412429
IME
1 Pcs.
NA+NC INV AUXILIARY CONTACTOR
Auxiliary for contactors 1 module 16/25A - aux contact inverter A +C - 5A - 250V~
Auxiliary for 1mod 16/25A contactors
Automation > Auxiliary device for distribution board devices
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Open contact+closed contact auxiliary contactor. Signaling auxiliaries - Auxiliary inverter contacts - Allow to signal the position status of the contacts of the product to which they are associated - For: - standard switches equipped or not with a control aid - contactors 1 module from 16 to 25A - 2 auxiliaries maximum - Mounted to the left of the contactor - Max I: 5A - Voltage: 250 V~ - 50/60 Hz - Contact: A + C - Number of modules: 0.5. Auxiliaries and connection module for CX³ contactors.
| Equipment Installation | Auxiliary switch/relay |
|---|---|
| function | Auxiliary switch |
| Width in number of modular spaces | 0.5 |
| Number of contacts normally opened | 1 |
| Number of Normally Closed Contacts | 1 |
| Number of investor contacts | 0 |
| Number of error signal switches | 0 |
| Nominal switching current | 5 A |
| Nominal voltage | 250 V |
|---|---|
| Type of voltage | AC |
| Self-tested for residual current function | No |
| Suitable for max.. No. of Poles of Main Contact Unit (Total) | 4 |
| Suitable for max.. Main Contact Unit Amperage | 16 A |
| Width | 9 mm |
| Height | 84.5 mm |
| Depth | 67 mm |
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Auxiliary switch |
| Number of fault-signal switches (EF007613) | 0 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Width in number of modular spacings (EF002950) | 0.5 |
| Suitable for max. current main contact unit (EF008730) | 16 A |
| Voltage type (EF000187) | AC |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Rated switch current (EF006706) | 5 A |
| With auto test for earth leakage function (EF008727) | No |
| Rated voltage (EF000228) | 250 V |
| Device fitting (EF007826) | Auxiliary switch / relay |
| Suitable for max. number of poles main contact unit (total) (EF008729) | 4 |
