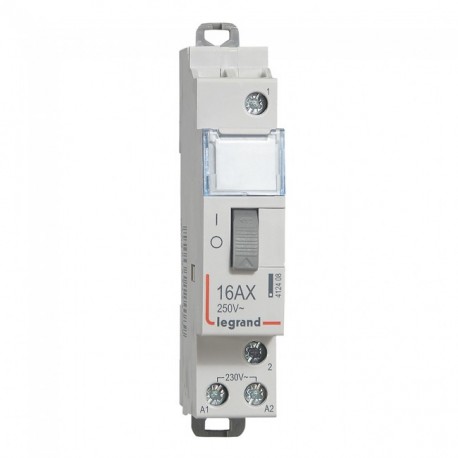

412408 IME *TELERRUPTOR 16A NA BOB. 230V
412408
412408
IME
10 Pcs.
*TELERRUPTOR 16A NA BOB. 230V
Standard remote switch 230V~ - 1P - 250V~ - 16A - 1NA - 1 module
Standard relay 230V~ - 1P - 250V~ - 16A - 1NA - 1mod
Automation > Latching relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Ime 412408 mechanical latching relay facilitates centralized control schemes in industrial electrical architectures, allowing users to toggle circuits remotely through pulse signals. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Function (EF000030): Mechanical for centralized control
- Voltage type (supply voltage) (EF002991): AC
- Number of contacts as change-over contact (EF008257): 0
- Max. switching current (cos phi = 0.6) (EF004920): 16 A
- Width in number of modular spacings (EF002950): 1
- Supply voltage (EF004127): 210 V
- Mounting method (EF000003): DIN rail
- Number of contacts as normally closed contact (EF008255): 0
- Number of contacts as normally open contact (EF008256): 1
- Type of control voltage 1 (EF002954): AC
- Type of control voltage 2 (EF002955): AC
- Control voltage 1 (EF002952): 210 V
- Built-in depth (EF000218): 44 mm
- Suitable for manual operation (EF002978): Yes
- Frequency control voltage 1 (EF002956): 50 Hz
More info
▲
Telerupotor 16A open contact coil 230V. Standard switches - The auxiliaries and the compensator can be associated with the standard Unipolar 16A - 250V~ teleswitches - Control current voltage: 230V~ - Contact type: 1 NC - Number of modules: 1. CX³ teleswitches - Comply with EN 60669-2-2 standard.
| function | Mechanical for centralized control |
|---|---|
| Type of mounting | DIN Lane |
| Width in number of modular spaces | 1 |
| Installation Depth | 44 mm |
| Number of contacts normally opened | 1 |
| Number of Normally Closed Contacts | 0 |
| Number of investor contacts | 0 |
| Control voltage 1 (Min-Max) | 210-250 V |
| Control voltage type 1 | AC |
| Control voltage frequency 1 (Min-Max) | 50-60 Hz |
| Control voltage type 2 | AC |
| Supply Voltage (Min-Max) | 210-230 V |
| Type of supply voltage | AC |
| Maximum switching current (cos phi = 0.6) | 16 A |
| Manual operation | Yes |
| Width | 17.8 mm |
|---|---|
| Height | 95 mm |
| Depth | 70.2 mm |
| Impact resistance | IK04 |
| Protection Class (IP) | IP3X |
| Operating Temperature (Min-Max) | -25-60 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Direction of the electricity supply | From the bottom |
| Display of markings on the connection terminals | Yes |
| Compliant with commissioning tests (1000 V) | Yes |
| Halogen-free | Yes |
| Connection Method | Screw-on terminal |
| Terminal Capacity (Min-Max) | 0.75-6 mm² |
| Connection type | Cable |
| Label Space/Print Area | Yes |
