View larger
Images are for illustrative purposes only. Please refer to data sheet for details

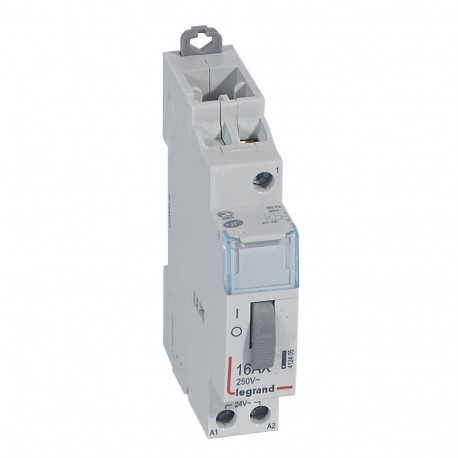

412405 IME TELERRUPTOR 16A NA BOB. 24V
412405
412405
IME
1 Pcs.
TELERRUPTOR 16A NA BOB. 24V
Standard Remote Switch 24V~ - 1P - 250V~ - 16A - 1NA - 1 module
Automation > Latching relay
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Telerupotor 16A open contact coil 24V. Standard switches - The auxiliaries and the compensator can be associated with the standard Unipolar 16A - 250V~ teleswitches - Control current voltage: 24V~ - Contact type: 1 NC - Number of modules: 1. CX³ teleswitches - Comply with EN 60669-2-2 standard.
| function | Mechanical for centralized control |
|---|---|
| Type of mounting | DIN Lane |
| Width in number of modular spaces | 1 |
| Installation Depth | 44 mm |
| Number of contacts normally opened | 1 |
| Number of Normally Closed Contacts | 0 |
| Number of investor contacts | 0 |
| Control voltage 1 (Min-Max) | 22-26 V |
|---|---|
| Control voltage type 1 | AC |
| Control voltage frequency 1 (Min-Max) | 50-60 Hz |
| Width | 17.8 mm |
| Height | 95 mm |
| Depth | 70.2 mm |
| Feature Name | Feature Value |
|---|---|
| Function (EF000030) | Mechanical for centralized control |
| Number of contacts as change-over contact (EF008257) | 0 |
| Width in number of modular spacings (EF002950) | 1 |
| Mounting method (EF000003) | DIN rail |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Type of control voltage 1 (EF002954) | AC |
| Control voltage 1 (EF002952) | 22 V |
| Built-in depth (EF000218) | 44 mm |
| Frequency control voltage 1 (EF002956) | 50 Hz |
