View larger
Images are for illustrative purposes only. Please refer to data sheet for details

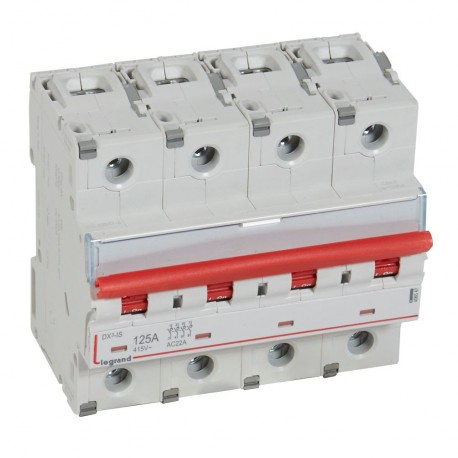

406547 IME DX3 IS-A 4P 125A SWITCH
406547
406547
IME
1 Pcs.
DX3 IS-A 4P 125A SWITCH
DX³ -IS disconnect switch - with remote trip - 4P - 125A - 6mod
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 415 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 1 kA |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Complete device in housing |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Toggle |
| Rated operation power at AC-23, 400 V (EF007027) | 40 kW |
| Rated permanent current Iu (EF001389) | 125 A |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | Yes |
| Colour control element (EF007167) | Red |
| Rated permanent current at AC-21, 400 V (EF009165) | 125 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 48 V |
| Degree of protection (IP), front side (EF003118) | IP20 |
