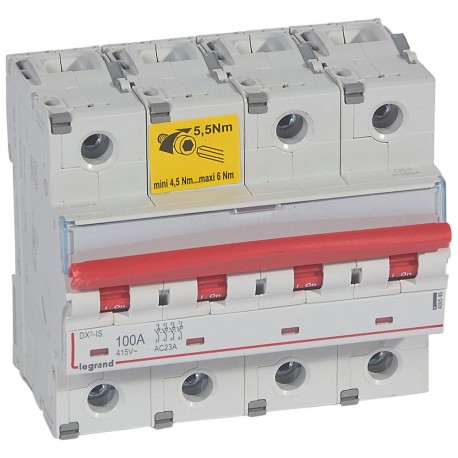

406546 IME DX3 IS-A 4P 100A SWITCH
406546
406546
IME
1 Pcs.
DX3 IS-A 4P 100A SWITCH
DX³ -IS disconnect switch - with remote trip - 4P - 400 V~ - 100A - 6 modules
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
DX3 IS-A 4-pole switch 100A. Disconnect switches with trip - Usage category AC 22A and AC 23A (AC 22A for 125 A) according to EN 60947-3 - Red key cover - Remote trip with associated control aid - Suitable for control and signalling assistants - Suitable for motorized controls - Visual indication of the actual status of the contacts: - "closed" position (red indicator) - "open" position (green indicator) Quadrule 400 V~ - Nominal current: 100A - Number of modules: 6. DX³ -IS disconnector switches - sectioning at installation headend, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | Yes |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | Yes |
| Execution as a switch-inverter | No |
| Maximum Rated Operating Voltage Ue AC | 415 V |
| Rated Operating Voltage (Min-Max) | 48-415 V |
| Permanent nominal current Iu | 100 A |
| Permanent current assigned with AC-21, 400 V | 100 A |
| Icw short-duration rated current resistance | 1 kA |
| Rated operating power at 400V AC-23 | 40 kW |
| Number of poles | 4 |
| Number of auxiliary contacts normally closed | 0 |
| Number of auxiliary contacts normally open | 0 |
| Number of auxiliary contacts as change contact | 3 |
| Optional motorized drive | Yes |
|---|---|
| Integrated motorized drive | No |
| Optional Tension Release | Yes |
| Device construction | Complete device in housing |
| Floor Mount | Yes |
| Suitable for 4-hole front mounting | Yes |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Drive element color | Red |
| Execution of the actuator element | Handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
| Degree of protection (IP), front | IP20 |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Max. rated operation voltage Ue AC (EF007355) | 415 V |
| Version as main switch (EF006981) | Yes |
| Number of auxiliary contacts as change-over contact (EF003531) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Interlockable (EF006281) | Yes |
| Rated short-time withstand current lcw (EF007050) | 1 kA |
| Voltage release optional (EF007491) | Yes |
| Device construction (EF008240) | Complete device in housing |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | Yes |
| Motor drive integrated (EF006697) | No |
| Version as reversing switch (EF009408) | No |
| Type of control element (EF006976) | Toggle |
| Rated operation power at AC-23, 400 V (EF007027) | 40 kW |
| Rated permanent current Iu (EF001389) | 100 A |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | Yes |
| Colour control element (EF007167) | Red |
| Rated permanent current at AC-21, 400 V (EF009165) | 100 A |
| Suitable for distribution board installation (EF007262) | Yes |
| Rated operating voltage (EF001435) | 48 V |
| Degree of protection (IP), front side (EF003118) | IP20 |
