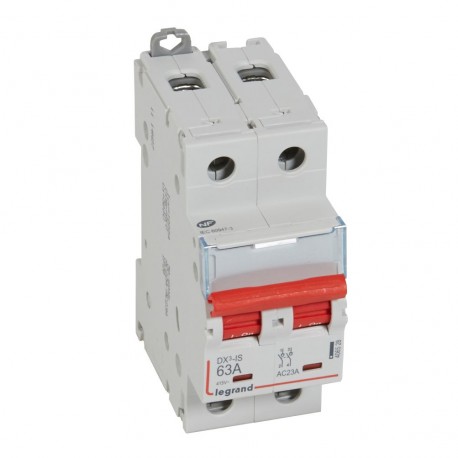

IME 406528 406528 IME DX3 IS-A 2P 63A SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

406528 IME DX3 IS-A 2P 63A SWITCH

406528

406528

IME

1 Pcs.

DX3 IS-A 2P 63A SWITCH DX³ -IS disconnect switch - with remote trip - 2P - 400 V~ - 63A - 2 modules DX³ -IS disconnect switch - with remote trip - 2P - 63A - 2mod

Connectors > Switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Ime 406528 DX3 IS-A is a 2-pole switch designed to provide dependable circuit switching and localized isolation within electrical distribution architectures.

Multi-pole modular switches are typically incorporated into control panels to govern power flow across dual lines and ensure safe operational shutdowns for specific sub-systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Max. rated operation voltage Ue AC (EF007355): 400 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 2
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Conditioned rated short-circuit current Iq (EF001444): 4500 kA
  • Rated permanent current Iu (EF001389): 63 A
  • Suitable for front mounting 4-hole (EF007247): No
  • Suitable for front mounting centre (EF007248): No
  • Suitable for intermediate mounting (EF007264): No

More info

▲
DX3 IS-A 2-pole switch 63A. Trip disconnect switches - Use category AC 22A and AC 23A (AC 22A for 125 A) according to EN 60947-3 - Red key cover - Remote triggering with associated control aid - Suitable for command and signalling assistants - Suitable for motorized controls - Visual indication of the actual status of the contacts: - "closed" position (red indicator) - "open" position (green indicator) Bipolar 400 V~ - Nominal current: 63A - Number of modules: 2. DX³ -IS disconnector switches - sectioning at installation headend, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
Running as a main switchYes
Operation as a maintenance/repair switchNo
Operation as a safety switchYes
Execution as an emergency stop deviceNo
Maximum Rated Operating Voltage Ue AC400 V
Permanent nominal current Iu63 A
Conditional Short-Circuit Current Rating Iq4500 kA
Number of poles2
Optional motorized driveNo
Integrated motorized driveNo
Device constructionFixed integrated technology for integrated device
Floor MountNo
Suitable for 4-hole front mountingNo
Suitable for center front mountingNo
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Execution of the actuator elementHandle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP20
