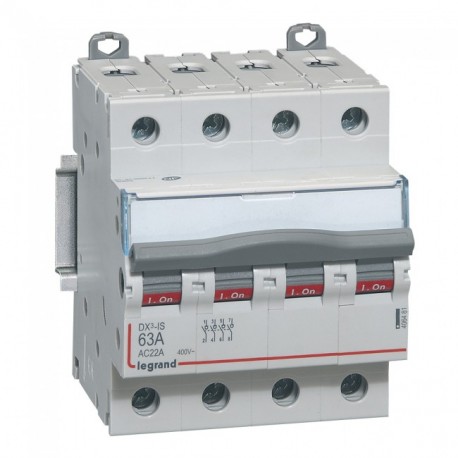

IME 406481 406481 IME DX3 IS 4P 63A SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

406481 IME DX3 IS 4P 63A SWITCH

406481

406481

IME

1 Pcs.

DX3 IS 4P 63A SWITCH DX³ -IS - 4P - 400V~ - 63A - 4 modules DX³ -IS - 4P - 400V~ - 63A - 4mod disconnect switch

Connectors > Switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An IME DX3 IS 4P 63A switch serves as a compact 4-pole circuit control device designed for installation within modular distribution boards and control panels. Panel builders rely on these switches to route and isolate electrical currents securely across multiple phases. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Max. rated operation voltage Ue AC (EF007355): 400 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 4
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Conditioned rated short-circuit current Iq (EF001444): 4500 kA
  • Rated permanent current Iu (EF001389): 63 A
  • Suitable for front mounting 4-hole (EF007247): No
  • Suitable for front mounting centre (EF007248): No
  • Suitable for intermediate mounting (EF007264): No

More info

▲
DX3 IS 4 pole switch 63A. Disconnector switches - Use category AC 22A according to EN 60947-3 - gray handle - Double cut contacts - Accepts a signaling auxiliary DX³ (AC) Tetrapolar 400V~ - Nominal current: 63A - Number of modules: 4. Disconnect switches DX³ -IS - sectioning at installation headend, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
Running as a main switchYes
Operation as a maintenance/repair switchNo
Operation as a safety switchYes
Execution as an emergency stop deviceNo
Maximum Rated Operating Voltage Ue AC400 V
Permanent nominal current Iu63 A
Conditional Short-Circuit Current Rating Iq4500 kA
Number of poles4
Optional motorized driveNo
Integrated motorized driveNo
Device constructionFixed integrated technology for integrated device
Floor MountNo
Suitable for 4-hole front mountingNo
Suitable for center front mountingNo
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Execution of the actuator elementHandle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP20
