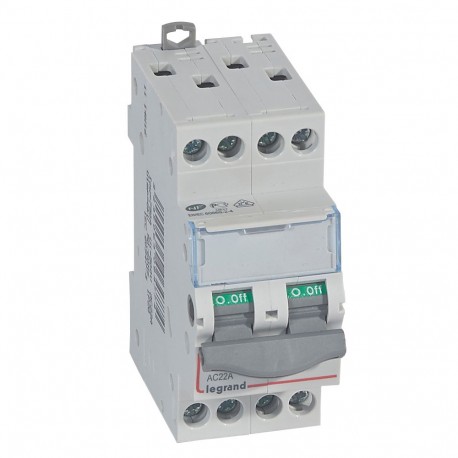

406477 IME *DX3 IS 4P 20A SWITCH
406477
406477
IME
1 Pcs.
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Ime DX3 IS 4-pole switch is a compact modular control component engineered for isolating electrical circuits in distribution boards. Devices of this type are regularly installed to enable secure manual disconnection of auxiliary loads or sub-circuits during servicing. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Version as safety switch (EF006985): Yes
- Version as maintenance-/service switch (EF006986): No
- Max. rated operation voltage Ue AC (EF007355): 400 V
- Version as main switch (EF006981): Yes
- Interlockable (EF006281): Yes
- Device construction (EF008240): Built-in device fixed built-in technique
- Number of poles (EF001391): 4
- Type of electrical connection of main circuit (EF006819): Screw connection
- Version as emergency stop installation (EF006959): No
- Motor drive integrated (EF006697): No
- Type of control element (EF006976): Toggle
- Conditioned rated short-circuit current Iq (EF001444): 4500 kA
- Rated permanent current Iu (EF001389): 20 A
- Suitable for front mounting 4-hole (EF007247): No
- Suitable for front mounting centre (EF007248): No
- Suitable for intermediate mounting (EF007264): No
More info
▲| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | No |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | No |
| Maximum Rated Operating Voltage Ue AC | 400 V |
| Permanent nominal current Iu | 20 A |
| Conditional Short-Circuit Current Rating Iq | 4500 kA |
| Number of poles | 4 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Device construction | Fixed integrated technology for integrated device |
|---|---|
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Execution of the actuator element | Handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
| Degree of protection (IP), front | IP20 |
