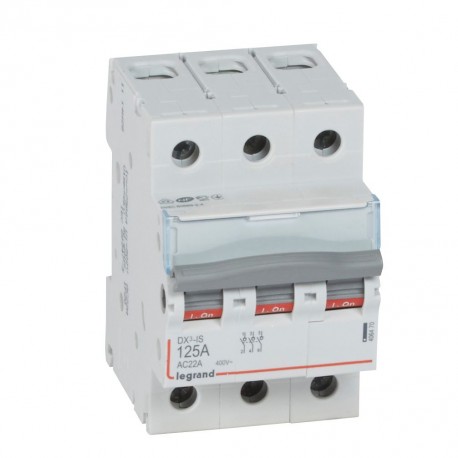

DX3 IS 3P 125A SWITCH DX³ -IS - 3P - 400V~ - 125A - 3 modules DX³ -IS - 3P - 400V~ - 125A - 3mod disconnect switch

Connectors > Switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing dependable circuit interruption, the Ime 406470 switch acts as a primary control point to disconnect electrical supplies in heavy-duty machinery setups. Panel builders incorporate these components into industrial enclosures to safely isolate downstream equipment for inspection and repair procedures.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Height (EF000040): 83 mm
  • Max. rated operation voltage Ue AC (EF007355): 400 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 3
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Conditioned rated short-circuit current Iq (EF001444): 4500 kA
  • Rated permanent current Iu (EF001389): 125 A
  • Suitable for front mounting 4-hole (EF007247): No
  • Suitable for front mounting centre (EF007248): No

More info

▲
DX3 IS 3 pole switch 125A. Disconnector switches - Use category AC 22A according to EN 60947-3 - gray handle - Double cut contacts - Accepts a signaling auxiliary DX³ (AC) Tripolar 400V~ - Nominal current: 125A - Number of modules: 3. Disconnector switches DX³ -IS - sectioning at installation header, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
Running as a main switchYes
Operation as a maintenance/repair switchNo
Operation as a safety switchYes
Execution as an emergency stop deviceNo
Maximum Rated Operating Voltage Ue AC400 V
Permanent nominal current Iu125 A
Conditional Short-Circuit Current Rating Iq4500 kA
Number of poles3
Optional motorized driveNo
Integrated motorized driveNo
Device constructionFixed integrated technology for integrated device
Floor MountNo
Suitable for 4-hole front mountingNo
Suitable for center front mountingNo
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Execution of the actuator elementHandle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP20
Width53.4 mm
Height83 mm
Depth80.9 mm
