View larger
Images are for illustrative purposes only. Please refer to data sheet for details

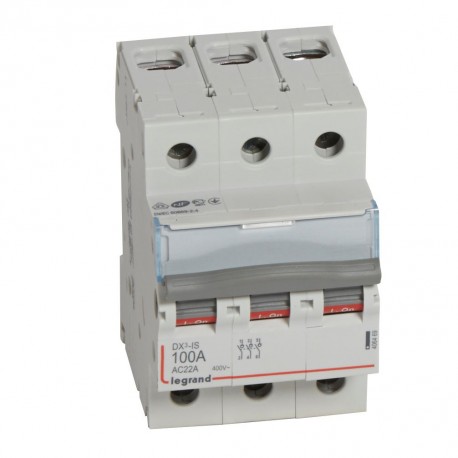

406469 IME DX3 IS 3P 100A SWITCH
406469
406469
IME
5 Pcs.
DX3 IS 3P 100A SWITCH
DX³ -IS - 3P - 400V~ - 100A - 3mod disconnect switch
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Height (EF000040) | 88.9 mm |
| Max. rated operation voltage Ue AC (EF007355) | 400 V |
| Version as main switch (EF006981) | Yes |
| Interlockable (EF006281) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Toggle |
| Conditioned rated short-circuit current Iq (EF001444) | 4500 kA |
| Rated permanent current Iu (EF001389) | 100 A |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Depth (EF000049) | 76.4 mm |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Width (EF000008) | 53.1 mm |
