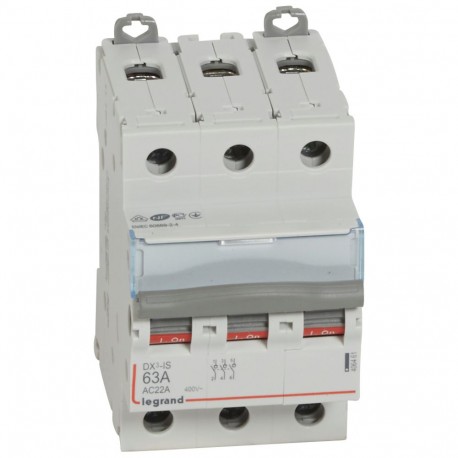

406461 IME DX3 IS 3P 63A SWITCH
406461
406461
IME
1 Pcs.
DX3 IS 3P 63A SWITCH
DX³ -IS - 3P - 400V~ - 63A - 3 modules disconnect switch
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
DX3 IS 3 pole switch 63A. Disconnecting switches - Use category AC 22A according to EN 60947-3 - gray handle - Double cut contacts - Accepts a signaling auxiliary DX³ (AC) Tripolar 400V~ - Nominal current: 63A - Number of modules: 3. Disconnecting switches DX³ -IS - sectioning in installation header, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | No |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | No |
| Maximum Rated Operating Voltage Ue AC | 400 V |
| Permanent nominal current Iu | 63 A |
| Conditional Short-Circuit Current Rating Iq | 4500 kA |
| Number of poles | 3 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Device construction | Fixed integrated technology for integrated device |
|---|---|
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Execution of the actuator element | Handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
| Degree of protection (IP), front | IP20 |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Max. rated operation voltage Ue AC (EF007355) | 400 V |
| Version as main switch (EF006981) | Yes |
| Interlockable (EF006281) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Toggle |
| Conditioned rated short-circuit current Iq (EF001444) | 4500 kA |
| Rated permanent current Iu (EF001389) | 63 A |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Degree of protection (IP), front side (EF003118) | IP20 |
