View larger
Images are for illustrative purposes only. Please refer to data sheet for details

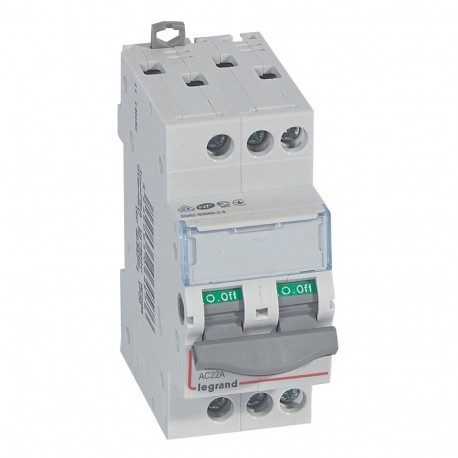

406457 IME DX3 IS 3P 20A SWITCH
406457
406457
IME
1 Pcs.
DX3 IS 3P 20A SWITCH
DX³ -IS - 3P - 400V~ - 20A - 2 modules disconnect switch
Connectors > Switch disconnector
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
DX3 IS 3 pole switch 20A. Disconnector switches - Use category AC 22A according to EN 60947-3 - gray handle - Double cut contacts - Accepts a signaling aid DX³ (AC) Tripolar 400V~ - Nominal current: 20A - Number of modules: 2. Disconnecting switches DX³ -IS - sectioning in installation header, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
| Running as a main switch | Yes |
|---|---|
| Operation as a maintenance/repair switch | No |
| Operation as a safety switch | Yes |
| Execution as an emergency stop device | No |
| Maximum Rated Operating Voltage Ue AC | 400 V |
| Permanent nominal current Iu | 20 A |
| Conditional Short-Circuit Current Rating Iq | 4500 kA |
| Number of poles | 3 |
| Optional motorized drive | No |
| Integrated motorized drive | No |
| Device construction | Fixed integrated technology for integrated device |
| Floor Mount | No |
| Suitable for 4-hole front mounting | No |
| Suitable for center front mounting | No |
| Suitable for distributor installation | Yes |
| Suitable for intermediate mounting | No |
| Execution of the actuator element | Handle |
| Interlockable | Yes |
| Main Current Circuit Connection Type | Threaded connection |
|---|---|
| Degree of protection (IP), front | IP20 |
| Width | 35.6 mm |
| Height | 94.8 mm |
| Depth | 76.4 mm |
| Impact resistance | IK04 |
| Operating Temperature (Min-Max) | -25-70 °C |
| Storage Temperature (Min-Max) | -40-70 °C |
| Type of voltage | AC |
| Direction of the electricity supply | From the top or bottom |
| Display of markings on the connection terminals | No |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | Yes |
| Terminal Capacity (Min-Max) | 1.5-16 mm² |
| Connection type | Busbar and cable |
| Label Space/Print Area | Yes |
| Feature Name | Feature Value |
|---|---|
| Version as safety switch (EF006985) | Yes |
| Version as maintenance-/service switch (EF006986) | No |
| Height (EF000040) | 94.8 mm |
| Max. rated operation voltage Ue AC (EF007355) | 400 V |
| Version as main switch (EF006981) | Yes |
| Interlockable (EF006281) | Yes |
| Device construction (EF008240) | Built-in device fixed built-in technique |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Version as emergency stop installation (EF006959) | No |
| Motor drive integrated (EF006697) | No |
| Type of control element (EF006976) | Toggle |
| Conditioned rated short-circuit current Iq (EF001444) | 4500 kA |
| Rated permanent current Iu (EF001389) | 20 A |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for intermediate mounting (EF007264) | No |
| Motor drive optional (EF007386) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Depth (EF000049) | 76.4 mm |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Width (EF000008) | 35.6 mm |
