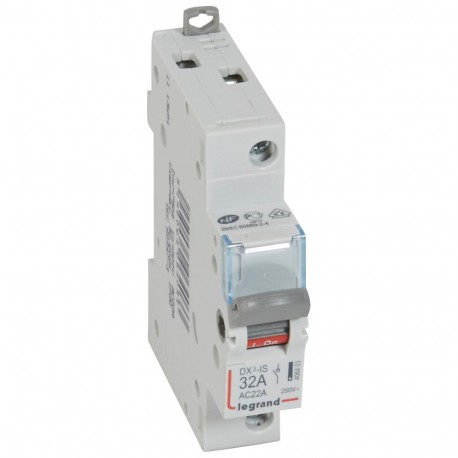

IME 406403 406403 IME DX3 IS 1P 32A SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

406403 IME DX3 IS 1P 32A SWITCH

406403

406403

IME

10 Pcs.

DX3 IS 1P 32A SWITCH DX³ -IS - 1P - 250V~ - 32A - 1 module disconnect switch

Connectors > Switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Ime 406403 DX3 IS is a compact 1-pole switch built for seamless integration into modular distribution boards and low-voltage control panels.

Single-pole isolation switches are routinely installed to provide safe manual disconnection points for individual lighting circuits, heating elements, or localized branch lines. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Max. rated operation voltage Ue AC (EF007355): 250 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 1
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Conditioned rated short-circuit current Iq (EF001444): 4500 kA
  • Rated permanent current Iu (EF001389): 32 A
  • Suitable for front mounting 4-hole (EF007247): No
  • Suitable for front mounting centre (EF007248): No
  • Suitable for intermediate mounting (EF007264): No

More info

▲
DX3 IS switch 1 pole 32A. Disconnector switches - Use category AC 22A according to EN 60947-3 - gray handle - Double cut contacts - Accepts a signaling auxiliary DX³ (AC) Unipolar 250V~ - Nominal current: 32A - Number of modules: 1. Disconnecting switches DX³ -IS - sectioning in installation header, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
Running as a main switchYes
Operation as a maintenance/repair switchNo
Operation as a safety switchYes
Execution as an emergency stop deviceNo
Maximum Rated Operating Voltage Ue AC250 V
Permanent nominal current Iu32 A
Conditional Short-Circuit Current Rating Iq4500 kA
Number of poles1
Optional motorized driveNo
Integrated motorized driveNo
Device constructionFixed integrated technology for integrated device
Floor MountNo
Suitable for 4-hole front mountingNo
Suitable for center front mountingNo
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Execution of the actuator elementHandle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP20
