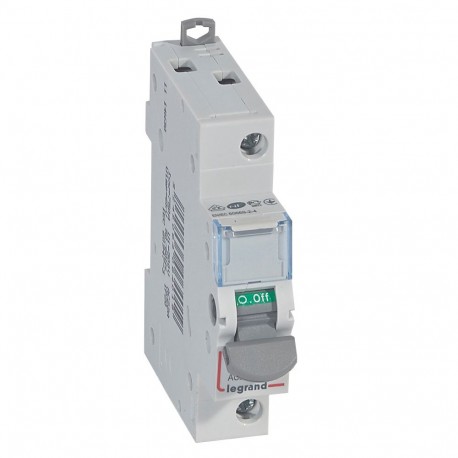

IME 406401 406401 IME *DX3 IS 1P 20A SWITCH View larger
Images are for illustrative purposes only. Please refer to data sheet for details

406401 IME *DX3 IS 1P 20A SWITCH

406401

406401

IME

10 Pcs.

*DX3 IS 1P 20A SWITCH DX³ -IS - 1P - 250V~ - 20A - 1 module disconnect switch

Connectors > Switch disconnector

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Ime 406401 switch serves as a compact manual control device integrated into electrical control panels for switching individual circuits on and off. These single-pole components are commonly deployed across automation and distribution systems for local circuit management. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Version as safety switch (EF006985): Yes
  • Version as maintenance-/service switch (EF006986): No
  • Height (EF000040): 94.8 mm
  • Max. rated operation voltage Ue AC (EF007355): 250 V
  • Version as main switch (EF006981): Yes
  • Interlockable (EF006281): Yes
  • Device construction (EF008240): Built-in device fixed built-in technique
  • Number of poles (EF001391): 1
  • Type of electrical connection of main circuit (EF006819): Screw connection
  • Version as emergency stop installation (EF006959): No
  • Motor drive integrated (EF006697): No
  • Type of control element (EF006976): Toggle
  • Conditioned rated short-circuit current Iq (EF001444): 4500 kA
  • Rated permanent current Iu (EF001389): 20 A
  • Suitable for front mounting 4-hole (EF007247): No
  • Suitable for front mounting centre (EF007248): No

More info

▲
DX3 IS 1 pole 20A switch. Disconnecting switches - Use category AC 22A according to EN 60947-3 - gray handle - Double cut contacts - Accepts a signaling auxiliary DX³ (AC) Unipolar 250V~ - Nominal current: 20A - Number of modules: 1. DX³ -IS disconnector switches - sectioning in installation header, 16 to 125A - Mounting in symmetrical profile EN 60715 - Fully visible cut.
Running as a main switchYes
Operation as a maintenance/repair switchNo
Operation as a safety switchYes
Execution as an emergency stop deviceNo
Maximum Rated Operating Voltage Ue AC250 V
Permanent nominal current Iu20 A
Conditional Short-Circuit Current Rating Iq4500 kA
Number of poles1
Optional motorized driveNo
Integrated motorized driveNo
Device constructionFixed integrated technology for integrated device
Floor MountNo
Suitable for 4-hole front mountingNo
Suitable for center front mountingNo
Suitable for distributor installationYes
Suitable for intermediate mountingNo
Execution of the actuator elementHandle
InterlockableYes
Main Current Circuit Connection TypeThreaded connection
Degree of protection (IP), frontIP20
Width17.8 mm
Height94.8 mm
Depth76.4 mm
Impact resistanceIK04
Operating Temperature (Min-Max)-25-70 °C
Storage Temperature (Min-Max)-40-70 °C
Type of voltageAC
Direction of the electricity supplyFrom the top or bottom
Display of markings on the connection terminalsNo
ColourGrey
RAL number7035
Halogen-freeYes
Terminal Capacity (Min-Max)1.5-16 mm²
Connection typeBusbar and cable
Label Space/Print AreaYes
