View larger
Images are for illustrative purposes only. Please refer to data sheet for details

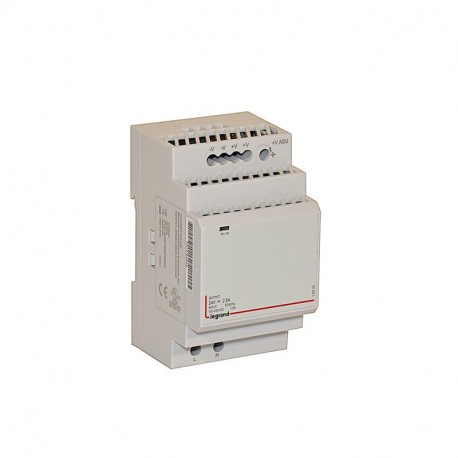

146723 IME ALIM DECOUP MOD 24V 60W
146723
146723
IME
1 Pcs.
ALIM DECOUP MOD 24V - 60W
Single-phase switched modular power supply, input 100 - 240Vac - output 24Vdc - 2.5A
Single-phase switched modular power supply, 100 - 240Vac - 24Vdc
Automation > DC-power supply
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Single-phase - 15 to 92 W - No-load consumption less than 0.3W -Adjustable output voltage Input voltage: 100 to 240V~ Output voltage: 24V= - Nominal power: 36W - Nominal intensity: 1.5A - Output range (V): 21.6 to 29 - 2 modules 17.5 mm.
| Type of supply voltage | AC/DC |
|---|---|
| 1st output voltage (Min-Max) | 21.6-29 V |
| Maximum Output Current 1 | 2.5 A |
| Adjustable output voltage | Yes |
| Nominal value output voltage 1 | 24 V |
| Output Current Rating 1 | 2.5 A |
| Short Circuit Protection | Yes |
| Rated AC supply voltage at 50 Hz (Min-Max) | 100-240 V |
| Regulated output voltage | Yes |
| Power Supplied | 60 W |
| Stabilized | Yes |
| Running the electrical connection | Threaded connection |
| Rail mounting possible | Yes |
| Suitable for wall mounting | No |
| Suitable for series installation | Yes |
|---|---|
| Width in number of modular spaces | 3 |
| Direct mounting possible | No |
| Width | 52.5 mm |
| Height | 90 mm |
| Depth | 54.5 mm |
| Suitable for safety functions | Yes |
| Operating Temperature (Min-Max) | -30-45 °C |
| Frequency (Min-Max) | 50-60 Hz |
| Direction of the electricity supply | From the bottom |
| Display of markings on the connection terminals | Yes |
| Terminal Capacity (Min-Max) | 2.5-2.5 mm² |
| Label Space/Print Area | No |
| Feature Name | Feature Value |
|---|---|
| Power output (EF003034) | 60 W |
| Height (EF000040) | 90 mm |
| Wall mounting possible (EF003973) | No |
| Suitable for safety functions (EF001597) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| Short-circuit-proof (EF007332) | Yes |
| Nominal value output voltage 1 (EF009393) | 24 V |
| Max. output current 1 (EF008284) | 2.5 A |
| Nominal value output current 1 (EF009396) | 2.5 A |
| Modular version (EF001126) | Yes |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Width in number of modular spacings (EF002950) | 3 |
| Direct mounting possible (EF005689) | No |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| 1st secondary output voltage (EF006792) | 21.6 V |
| Secondary voltage adjustable (EF007002) | Yes |
| Depth (EF000049) | 54.5 mm |
| Width (EF000008) | 52.5 mm |
