View larger
Images are for illustrative purposes only. Please refer to data sheet for details

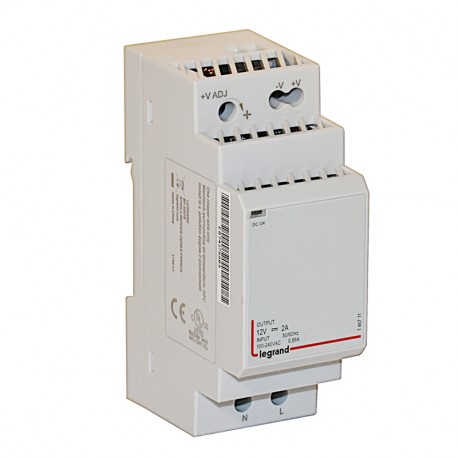

146711 IME ALIM DECOUP MOD 12V 24W
146711
146711
IME
1 Pcs.
ALIM DECOUP MOD 12V - 24W
Single-phase switch-mode modular power supply, 100 - 240Vac - 12 Vdc
Automation > DC-power supply
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Power output (EF003034) | 24 W |
| Height (EF000040) | 90 mm |
| Wall mounting possible (EF003973) | No |
| Suitable for safety functions (EF001597) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Output voltage stabilized (EF003092) | Yes |
| Rated supply voltage AC 50 Hz (EF007076) | 100 V |
| Short-circuit-proof (EF007332) | Yes |
| Nominal value output voltage 1 (EF009393) | 12 V |
| Max. output current 1 (EF008284) | 2 A |
| Nominal value output current 1 (EF009396) | 2 A |
| Modular version (EF001126) | Yes |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Width in number of modular spacings (EF002950) | 2 |
| Direct mounting possible (EF005689) | No |
| Stabilized (EF005302) | Yes |
| Type of electric connection (EF003961) | Screw connection |
| 1st secondary output voltage (EF006792) | 10.8 V |
| Secondary voltage adjustable (EF007002) | Yes |
| Depth (EF000049) | 54.5 mm |
| Width (EF000008) | 35 mm |
