View larger
Images are for illustrative purposes only. Please refer to data sheet for details

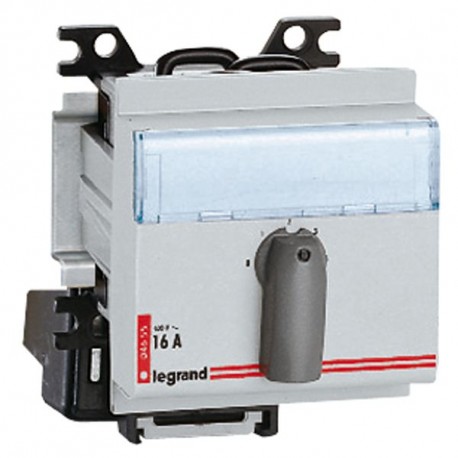

004658 IME CONM ROT BIPOLAR 2 POS + STOP
004658
004658
IME
1 Pcs.
CONM ROT BIPOLAR 2 POS + STOP
2-way switch with stop - 2P - 400V~ - 16A
Automation > Control switch
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Bipolar rotary switch 2 positions +STOP. Rotary switches - AC 22A breaking power according to IEC 60947-3 2 positions + stop - Bipolar 16A 400V~: - Number of modules: 3. Inverter switches, push buttons and CX³ push buttons, rotary switches.
| Switch Type | Switch |
|---|---|
| Number of poles | 2 |
| Maximum Rated Operating Voltage Ue AC | 690 V |
| Permanent nominal current Iu | 16 A |
| Number of switch positions | 3 |
| Off | Yes |
| With recoil in zero position | No |
|---|---|
| Device construction | Surface-mounted device |
| Complete device in the housing | No |
| Execution of the actuator element | Short swivel handle |
| Faceplate Size | Other |
| Degree of protection (IP), front | IP40 |
| Feature Name | Feature Value |
|---|---|
| Type of switch (EF003496) | Reverser |
| Complete device in housing (EF007317) | No |
| Type of control element (EF006976) | Short thumb-grip |
| Max. rated operation voltage Ue AC (EF007355) | 690 V |
| Number of switch positions (EF000231) | 3 |
| Suitable for front mounting (EF007246) | No |
| Rated permanent current Iu (EF001389) | 16 A |
| Front shield size (EF007176) | Other |
| Suitable for floor mounting (EF007243) | Yes |
| Device construction (EF008240) | Surface mounted device |
| Number of poles (EF001391) | 2 |
| Degree of protection (IP), front side (EF003118) | IP40 |
| With zero (off) position (EF001416) | Yes |
| With retraction in 0-position (EF002428) | No |
