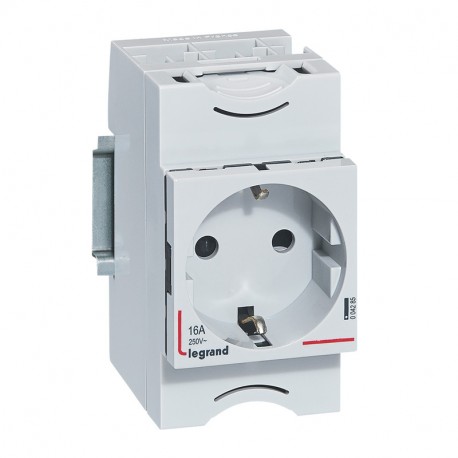

IME 004285 004285 IME *SOCKET 2P+T LAT. 16A 2'5MOD View larger
Images are for illustrative purposes only. Please refer to data sheet for details

004285 IME *SOCKET 2P+T LAT. 16A 2'5MOD

004285

004285

IME

1 Pcs.

*SOCKET 2P+T LAT. 16A 2'5MOD Power socket - 10/16A - 250V~ - 2P+T - with shutter

Automation > Socket outlet for distribution board

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Ime 004285 *SOCKET 2P+T LAT. 16A 2'5MOD is a modular electrical socket engineered for installation on standard mounting rails within distribution panels and control cabinets. These devices provide technicians with a dependable plug-in connection point for auxiliary tools and testing instruments during operations. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Number of active contacts (flat) (EF011999): 0
  • Degree of protection (IP) (EF005474): IP2X
  • Number of active contacts (round) (EF011998): 2
  • Width in number of modular spacings (EF002950): 2.5
  • Voltage type (EF000187): AC
  • With control lamp (EF005055): No
  • Number of active contacts (square) (EF017115): 0
  • Protective contact (EF017116): Round
  • With enhanced contact protection (EF000389): Yes
  • Rated current (EF000227): 16 A
  • With hinged lid (EF000117): No
  • Number of socket outlets (EF000336): 1
  • Built-in depth (EF000218): 60 mm
  • Rated voltage (EF000228): 250 V

More info

▲
Modular 16A 2-pole power outlet + LEXIC ground. Power sockets - Allow the comb to pass through and accept the power comb (bottom input) downstream of a single-pole + neutral circuit breaker 10/16A - 250V~ - 2P+T with shutters - Number of modules: 2.5. Power sockets and special brackets. Automatic terminals.
Nominal voltage250 V
Nominal current16 A
With flip-top lidNo
Type of voltageAC
ModelOther
Protective contactRound
With enhanced contact protectionYes
With control lightNo
Width in number of modular spaces2.5
Installation Depth60 mm
Protection Class (IP)IP2X
Number of sockets1
Number of active (round) contacts2
Number of active contacts (drawings)0
Number of active contacts (square)0
Width45 mm
Height83 mm
Depth55.8 mm
Impact resistanceIK05
Operating Temperature (Min-Max)-5-35 °C
Storage Temperature (Min-Max)-10-70 °C
Frequency (Min-Max)50-60 Hz
Direction of the electricity supplyFrom the bottom
Display of markings on the connection terminalsYes
ColourGrey
RAL number7035
Halogen-freeNo
Terminal Capacity (Min-Max)1.5-10 mm²
Connection typeCable
Label Space/Print AreaNo
Type of mountingDIN Lane
