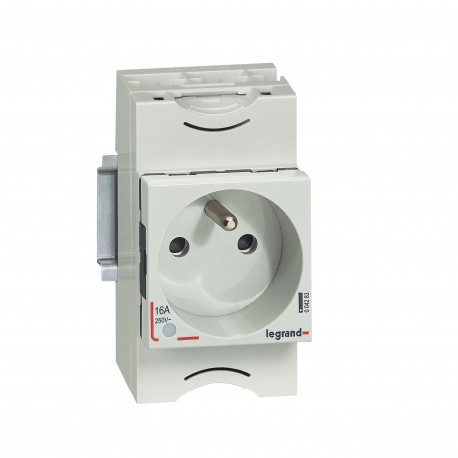

004283 IME 2P+T OUTGOING SOCKET+PILOT
004283
004283
IME
1 Pcs.
2P+T OUTGOING SOCKET+PILOT
Power socket - 10/16A - 250V~ - 2P+T - with shutter and indicator
Automation > Socket outlet for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Take 2 poles+OUTGOING ground+Pilot. Power outlets - Allow the comb to pass through and accept the power comb (bottom input) downstream of a single-pole + neutral circuit breaker 10/16A - 250V~ - 2P+T outgoing, with shutters and voltage presence indicator - Number of modules: 2.5. Power sockets and special brackets.
| Nominal voltage | 250 V |
|---|---|
| Nominal current | 16 A |
| With flip-top lid | No |
| Type of voltage | AC |
| Model | Power socket with protective contact CEE 7/3 (type F) |
| Protective contact | Round |
| With enhanced contact protection | Yes |
| With control light | Yes |
| Width in number of modular spaces | 2.5 |
| Installation Depth | 60 mm |
| Protection Class (IP) | IP2X |
| Number of sockets | 1 |
| Number of active (round) contacts | 2 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| Width | 45 mm |
| Height | 83 mm |
|---|---|
| Depth | 55.8 mm |
| Impact resistance | IK05 |
| Operating Temperature (Min-Max) | -5-35 °C |
| Storage Temperature (Min-Max) | -10-70 °C |
| Frequency (Min-Max) | 50-60 Hz |
| Direction of the electricity supply | From the bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | No |
| Terminal Capacity (Min-Max) | 1.5-10 mm² |
| Connection type | Cable |
| Label Space/Print Area | No |
| Type of mounting | DIN Lane |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of active contacts (flat) (EF011999) | 0 |
| Degree of protection (IP) (EF005474) | IP2X |
| Number of active contacts (round) (EF011998) | 2 |
| Width in number of modular spacings (EF002950) | 2.5 |
| Voltage type (EF000187) | AC |
| With control lamp (EF005055) | Yes |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Round |
| With enhanced contact protection (EF000389) | Yes |
| Rated current (EF000227) | 16 A |
| With hinged lid (EF000117) | No |
| Number of socket outlets (EF000336) | 1 |
| Built-in depth (EF000218) | 60 mm |
| Rated voltage (EF000228) | 250 V |
