View larger
Images are for illustrative purposes only. Please refer to data sheet for details

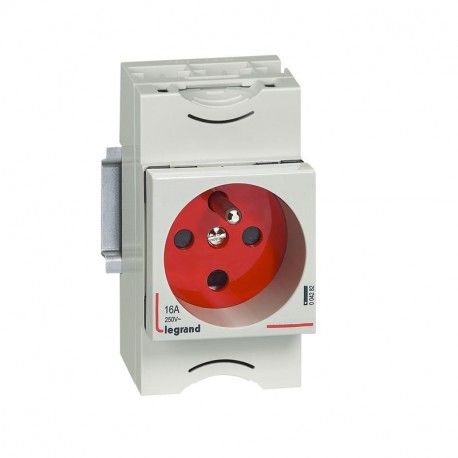

004282 IME *SOCKET 2P+T 16A 2'5MOD
004282
004282
IME
1 Pcs.
*SOCKET 2P+T 16A 2'5MOD
Power socket - 10/16A - 250V~ - 2P+T - with shutter and anti-error device
Automation > Socket outlet for distribution board
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
LEXIC 2-pole modular power socket+ground. Power sockets - Allow the comb to pass through and accept the power comb (input from the bottom) - For computer uses - 2P+T projection, with protection shutters and anti-error device for assisted or specialized circuits - French standard - Number of modules: 2.5. Power sockets and special brackets.
| Nominal voltage | 250 V |
|---|---|
| Nominal current | 16 A |
| With flip-top lid | No |
| Type of voltage | AC |
| Model | Power socket with protective contact CEE 7/3 (type F) |
| Protective contact | Round |
| With enhanced contact protection | Yes |
| With control light | No |
| Width in number of modular spaces | 2.5 |
| Installation Depth | 60 mm |
| Protection Class (IP) | IP2X |
| Number of sockets | 1 |
| Number of active (round) contacts | 2 |
| Number of active contacts (drawings) | 0 |
| Number of active contacts (square) | 0 |
| Width | 45 mm |
| Height | 83 mm |
|---|---|
| Depth | 55.8 mm |
| Impact resistance | IK05 |
| Operating Temperature (Min-Max) | -5-35 °C |
| Storage Temperature (Min-Max) | -10-70 °C |
| Frequency (Min-Max) | 50-60 Hz |
| Direction of the electricity supply | From the bottom |
| Display of markings on the connection terminals | Yes |
| Colour | Grey |
| RAL number | 7035 |
| Halogen-free | No |
| Terminal Capacity (Min-Max) | 1.5-10 mm² |
| Connection type | Cable |
| Label Space/Print Area | No |
| Type of mounting | DIN Lane |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Socket outlet CEE 7/3 (type F) |
| Number of active contacts (flat) (EF011999) | 0 |
| Degree of protection (IP) (EF005474) | IP2X |
| Number of active contacts (round) (EF011998) | 2 |
| Width in number of modular spacings (EF002950) | 2.5 |
| Voltage type (EF000187) | AC |
| With control lamp (EF005055) | No |
| Number of active contacts (square) (EF017115) | 0 |
| Protective contact (EF017116) | Round |
| With enhanced contact protection (EF000389) | Yes |
| Rated current (EF000227) | 16 A |
| With hinged lid (EF000117) | No |
| Number of socket outlets (EF000336) | 1 |
| Built-in depth (EF000218) | 60 mm |
| Rated voltage (EF000228) | 250 V |
