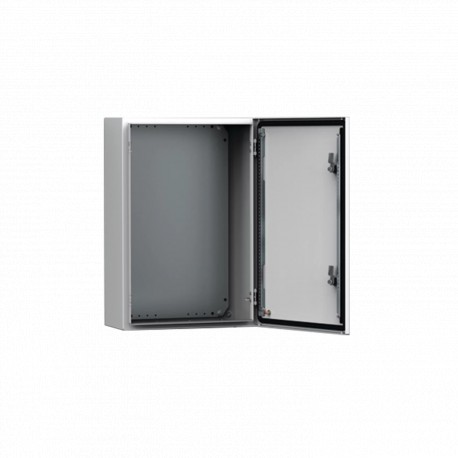

MAD0608030R5 ELDON Wall mounted, 600x800x300
MAD0608030R5
0608030
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Wall Mounting Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Offering reliable protection for sensitive internal equipment, the MAD0608030R5 ELDON Wall mounted, 600x800x300 is a wall-mounted enclosure designed to house electrical controllers, automation hardware, and distribution components. Wall enclosures safeguard critical electronics against dust, moisture, and mechanical impact in industrial plants.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (H): 600mm
- Width (W): 800mm
- Depth (D): 300mm
- Mounting Plate Included: Yes
- Panel Size: 570 x 750mm
- Max Mounting Depth: 282mm
- Latch Quantity: 1
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Body Thickness: 1.5mm
- Door Thickness: 2mm
- Gland Plate Opening Width: 310mm
- Gland Plate Opening Depth: 96mm
- Gland Plate Type: 2
More info
▲Features
- Material: Body: 1.5 mm mild steel. Gland plate: 1.4 mm mild steel. Door: 2 mm mild steel Mounting plate: 2 mm galvanized steel / 2.5 mm MAD1001030R5 and above.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Door: Surface mounted with 130° opening. Concealed removable hinges with captive pin. Inner M6 welded studs to mount door profiles MMDP. Two removable mounting profiles on the right hand door and two on the left hand door. Sealing is ensured by an injected one piece polyurethane gasket.
- Lock: Customized lock with double-bit for easy opening of the door. Double-bit 3 mm insert and 90° movement. Espagnolette three point locking. Other inserts are available as an accessory.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
- Gland Plate Opening: Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier.
- Protection: IP 55, TYPE 12, IK 10. For outdoor installation, the use of a rain hood, ARF, and 100% polyester paint coating plus corrosion protection primer is recommended. Resistance to corrosion must be taken into consideration for outdoor and indoor applications.
- Finish: RAL 7035 structured powder coating.
- Delivery: Enclosure with doors and mounting plate (not included for item numbers ending with PER5). Two door mounting profiles on each door. Gland plate(s) with gasket(s), metallic double-bit 3 mm key, and mounting accessories. Earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 600mm |
| Width (W) | 800mm |
| Depth (D) | 300mm |
| Mounting Plate Included | Yes |
| Panel Size | 570 x 750mm |
| Max Mounting Depth | 282mm |
| Latch Quantity | 1 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.5mm |
| Door Thickness | 2mm |
| Gland Plate Opening Width | 310mm |
| Gland Plate Opening Depth | 96mm |
| Gland Plate Type | 2 |
| Number of Gland Plate Openings | 2 |
| Weight | 34.8kg |
| UPC | 783510486518 |
| EAN | 8713574123526 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
