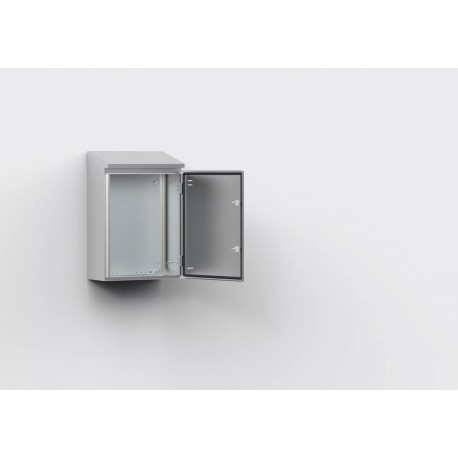

AFS06083 ELDON Wall mounted, 600x800x300
AFS06083
06083
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eldon AFS06083 wall mounted stainless steel enclosure protects sensitive electrical instruments, terminals, and control electronics in harsh industrial settings. Outfitted with an integrated pitched roof, this style of wall box prevents liquid accumulation on top in outdoor or washdown zones. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Width (EF000008): 800.00 mm
- Height (EF000040): 600.00 mm
- Depth (EF000049): 300.00 mm
- Material (EF002169): Stainless steel
- Material quality (EF001257): Stainless steel 304
- Surface finishing (EF006569): Untreated
- Colour (EF000007): Stainless steel
- With mounting plate (EF000118): Yes
- Mounting plate depth-adjustable (EF006054): No
- Pole fastening (EF009582): No
- Number of doors (EF000122): 1.00
- Number of locks (EF000123): 2.00
- Pitched roof (EF009278): Yes
- EMC-version (EF001062): No
- With glazed door (EF001089): No
- With ventilation door (EF006279): No
More info
▲Features
- Body: Angled 8 to 20°, the sloped-top roof provides a 10 mm overhang to drain liquids and other debris away from the front door. Folded and seam welded. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Additional information: In environments known for quick temperature changes, consideration to condensation should be taken. Please see the thermal management section.
- Protection: Corresponds with IP 66, TYPE 4X, 12, IK 10.
- Mounting plate: On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges.
- Material: AISI 304L / AISI 316L pre-grained stainless steel. Body: 1.5 mm. Door: 1.5 mm / 2 mm for enclosures with a height of 1000 mm or greater. Mounting plate: 2.5 mm galvanized steel.
- Lock: Zamak double-bit 3 mm lock, with 90° movement. Stainless steel lock and other locks available on request.
- Finish: 400 pre-grained stainless steel.
- Door: Corner formed in one piece. Surface mounted with 130° opening. Concealed AISI 304 stainless steel hinges with captive pin. Can be mounted to give left or right hand opening (Machining is required). Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket.
- Delivery: Enclosure with door, mounting plate, metallic key and mounting accessories.
- Cable access: No gland openings as standard.
- Cable access: No gland openings as standard
- Additional information: In environments known for quick temperature changes, consideration to condensation should be taken; please see the thermal management section
