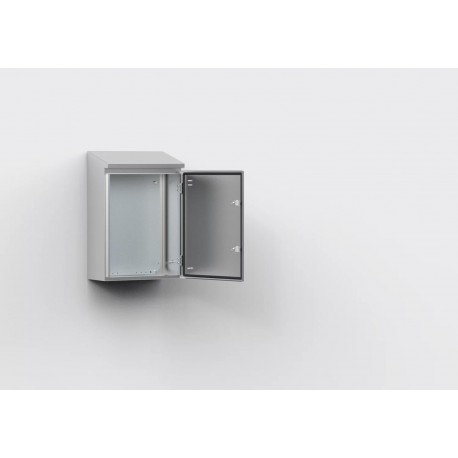

AFS04042-316 ELDON Wall mounted, 400x400x210 AFS04042-316
AFS04042-316
04042
ELDON
1 Pcs.
Wall mounted, 400x400x210 AFS04042-316
Mural, 400x400x210, toilet, 1 door, with MP, stainless steel 316, IP66
Wall mounted, 400x400x210, Hygienic encl., 1-door, with MP, stainless 316, IP66
Automation > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Eldon AFS04042-316 is a stainless steel 316L wall mounted enclosure with a slanted top configuration. Compact slope-top enclosures protect pushbuttons, meters, and small automation nodes in hygienic industrial processing plants.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height: 400mm
- Width: 400mm
- Depth: 210mm
- Material: Stainless Steel 316L
- Panel Size: 375 x 350mm
- Max Mounting Depth: 190mm
- Degree of Slope: 15°
- Finish: Brushed
- Latch Quantity: 1
- Weight: 11.2kg
- UPC: 783510119959
- EAN: 8713574191105
- Standard Packaging Quantity: 1
- Packing Quantity: 1
- Width (EF000008): 400.00 mm
- Height (EF000040): 400.00 mm
More info
▲Features
- Body: Angled 8 to 20°, the sloped-top roof provides a 10 mm overhang to drain liquids and other debris away from the front door. Folded and seam welded. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
- Additional information: In environments known for quick temperature changes, consideration to condensation should be taken. Please see the thermal management section.
- Protection: Corresponds with IP 66, TYPE 4X, 12, IK 10.
- Mounting plate: On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges.
- Material: AISI 304L / AISI 316L pre-grained stainless steel. Body: 1.5 mm. Door: 1.5 mm / 2 mm for enclosures with a height of 1000 mm or greater. Mounting plate: 2.5 mm galvanized steel.
- Lock: Zamak double-bit 3 mm lock, with 90° movement. Stainless steel lock and other locks available on request.
- Finish: 400 pre-grained stainless steel.
- Door: Corner formed in one piece. Surface mounted with 130° opening. Concealed AISI 304 stainless steel hinges with captive pin. Can be mounted to give left or right hand opening (Machining is required). Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket.
- Delivery: Enclosure with door, mounting plate, metallic key and mounting accessories.
- Cable access: No gland openings as standard.
- Cable access: No gland openings as standard
- Additional information: In environments known for quick temperature changes, consideration to condensation should be taken; please see the thermal management section
