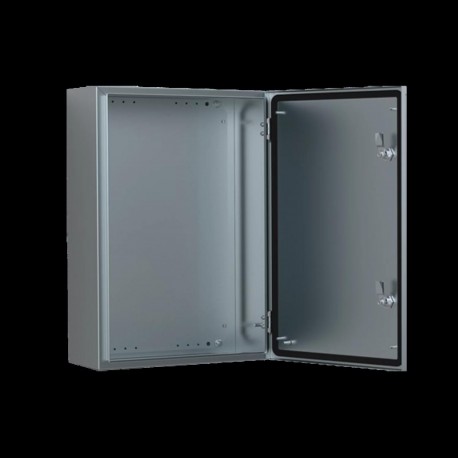

ELDON ASR0362415 ASR0362415 ELDON Wall mounted, 360x240x150 ASR0362415 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ASR0362415 ELDON Wall mounted, 360x240x150 ASR0362415

ASR0362415

0362415

ELDON

1 Pcs.

Wall mounted, 360x240x150 ASR0362415 Mural, 360x240x150, compact, 1-door, with MP, stainless 304, IP66 Single Door Enclosure, ASR, 360x240x150mm, Brushed, Stainless 304

Automation > Enclosure/switchgear cabinet (empty)
Stainless steel enclosures

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Features

  • Material: AISI 304L / AISI 316L pre-grained stainless steel. Body: 1.5 mm. Door for AISI 304L: 1.5 mm / 2 mm for enclosures with a height or width of 600 mm or greater. Door for AISI 316L: 2 mm. Mounting plate: 2 mm galvanized steel.
  • Body: Folded and seam welded. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
  • Door: Corner formed in one piece. Surface mounted, with 130° opening. Concealed AISI 304 stainless steel hinges with captive pin. Can be mounted to allow left or right hand opening. Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket. Inner M6 welded studs, to mount optional door profiles MMDP.
  • Lock: nVent HOFFMAN customized zamak double-bit 3 mm lock, with 90° movement and anti-vibration mechanism. Two locks for 600 mm high to 800 mm high enclosures. Espagnolette three point locking or 3 locks for 1000 mm high enclosures and above. Stainless steel lock and other versions are available as accessories.
  • Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges. By using the AMG accessory, the mounting plate position can be adjusted to any depth.
  • Cable access: No gland plate openings as standard, to maximise sealing and cleanliness.
  • Protection: Corresponds with IP 66, TYPE 4X, 12, IK 10.
  • Finish: 400 pre-grained stainless steel.
  • Delivery: Enclosure with door, mounting plate, plastic double-bit 3 mm key, and mounting accessories. Metallic key, for height 1000 mm and above.
  • Additional information: For outdoor environments, exposed to precipitation, the use of a rain hood is advised. Also in environments known for quick temperature changes, consideration to condensation should be taken. Please see the thermal management section.
Atributo del producto Valor
Height360 mm
Width240 mm
Depth150 mm
MaterialStainless Steel 304
Panel Size330 x 190 mm
Max Mounting Depth132 mm
FinishBrushed
ColorUnpainted
Body Thickness1.5 mm
Door Thickness1.5 mm
Latch Quantity1
Weight4.85 kg
UPC783510450267
EAN8713574120389
Standard Packaging Quantity1.0000
Packing Quantity1.0000
