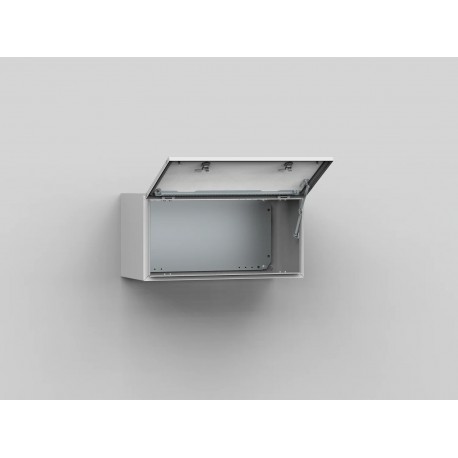

MAP0306030R5 ELDON Wall mounted, 300x600x300 MAP0306030R5
MAP0306030R5
0306030
ELDON
1 Pcs.
Automation > Enclosure/switchgear cabinet (empty)
Steel Wall Mounting Enclosures
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Eldon MAP0306030R5 wall-mounted enclosure provides secure, compact housing for localized control buttons, terminal strips, and small automation devices. Wall-mounted junction boxes safeguard internal electrical connections from accidental contact, dust, and moisture in industrial workspaces.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Height (H): 300mm
- Width (W): 599mm
- Depth (D): 300mm
- Mounting Plate Included: Yes
- Panel Size: 270 x 550mm
- Max Mounting Depth: 282mm
- Latch Quantity: 2
- Material: Mild Steel
- Finish: Powder Coated
- Color: Light Gray
- Color Code: RAL 7035
- Body Thickness: 1.5mm
- Door Thickness: 1.5mm
- Gland Plate Opening Width: 510mm
- Gland Plate Opening Depth: 96mm
- Gland Plate Type: 4
More info
▲Features
- Material: Body: 1.5 mm mild steel. Gland plate: 1.4 mm mild steel. Door: 1.5 mm mild steel MAP0306030R5 / 2 mm MAP0308030R5 and above. Mounting plate: 2 mm galvanized steel.
- Body: Folded and seam welded. Four 8.5 mm diameter holes for wall fixing, pressed out in 20.4 mm diameter × 2 mm depressions, to allow air circulation around the rear part of the enclosure.
- Front panel: Surface mounted with 130° opening. Concealed removable hinges with captive pin. Hinges can be mounted to allow top or bottom opening. Mechanical door stop keeps the panel open. Inner M6 welded studs. One removable mounting profile on the hinge side. Sealing is ensured by an injected one piece polyurethane gasket.
- Lock: Customized lock with double-bit for easy opening of the panel. Double-bit 3 mm insert and 90° movement. Other inserts are available as an accessory.
- Mounting plate: The mounting plate is marked vertically at 10 mm intervals, for easy horizontal positioning of equipment. On the top and bottom there are holes to facilitate cable fixing. Fixed onto M8 press welded studs to the rear of the enclosure. All sides, from 800 mm and above, are strengthened by folded edges.
- Gland Plate Opening: In top and bottom. Situated at the far rear of the enclosure, to make cabling onto the mounting plate easier. Gland plates (AF) and gaskets (AG) are not included. If the MAP panel is to be combined to an MAS or MAD enclosure, then the gland plate from the MAS/MAD enclosure can be used with the MAP panel.
- Protection: Mounted stand alone, complies with IP 66, TYPE 4, 12, IK 10, providing you mount the gland plate(s) and gasket(s), supplied as an accessory. Combined with MAS or MAD, complies with IP 55, TYPE 12.
- Finish: RAL 7035 structured powder coating.
- Delivery: Enclosure with panel, one panel mounting profile and mounting plate (not included for item numbers ending with PER5). Plastic double-bit 3 mm key and mounting accessories. Earthing facilities.
| Atributo del producto | Valor |
|---|---|
| Height (H) | 300mm |
| Width (W) | 599mm |
| Depth (D) | 300mm |
| Mounting Plate Included | Yes |
| Panel Size | 270 x 550mm |
| Max Mounting Depth | 282mm |
| Latch Quantity | 2 |
| Material | Mild Steel |
| Finish | Powder Coated |
| Color | Light Gray |
| Color Code | RAL 7035 |
| Body Thickness | 1.5mm |
| Door Thickness | 1.5mm |
| Gland Plate Opening Width | 510mm |
| Gland Plate Opening Depth | 96mm |
| Gland Plate Type | 4 |
| Number of Gland Plate Openings | 2 |
| Weight | 14.36kg |
| UPC | 783510486822 |
| EAN | 8713574123809 |
| Standard Packaging Quantity | 1 |
| Packing Quantity | 1 |
